PROBLEM #3 (10 marks) D B The mod ABC has a mass m.-2.4 kg and is attached to a pun support at B. A sphere Dof mass-0.8

[answerhappygod]

Problem 3 10 Marks D B The Mod Abc Has A Mass M 2 4 Kg And Is Attached To A Pun Support At B A Sphere Dof Mass 0 8 1 (33.54 KiB) Viewed 13 times

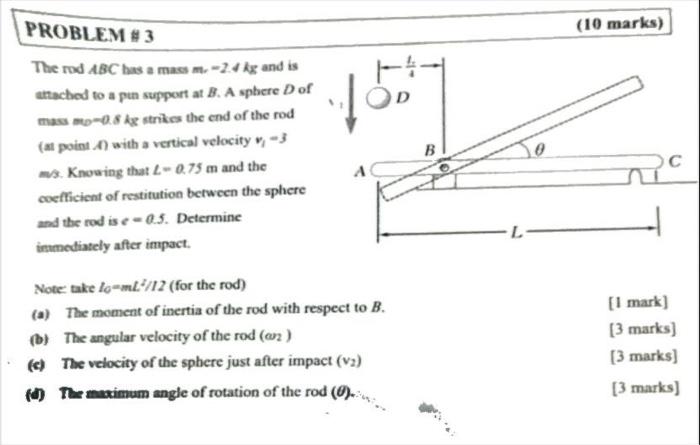

PROBLEM #3 (10 marks) D B The mod ABC has a mass m.-2.4 kg and is attached to a pun support at B. A sphere Dof mass-0.8 ke strikes the end of the rod (al point with a vertical velocity ~ --} ms. Knowing that 2-0.75 m and the coefficient of restitution between the sphere and the rod ise-05. Determine immediately after impact С L Note: take lo-ml/12 (for the rod) (a) The moment of inertia of the rod with respect to B. fo) The angular velocity of the rod (m2) () The velocity of the sphere just after impact (v2) (d) The maximum angle of rotation of the rod (0) [1 mark) [3 marks) [3 marks) [3 marks)
