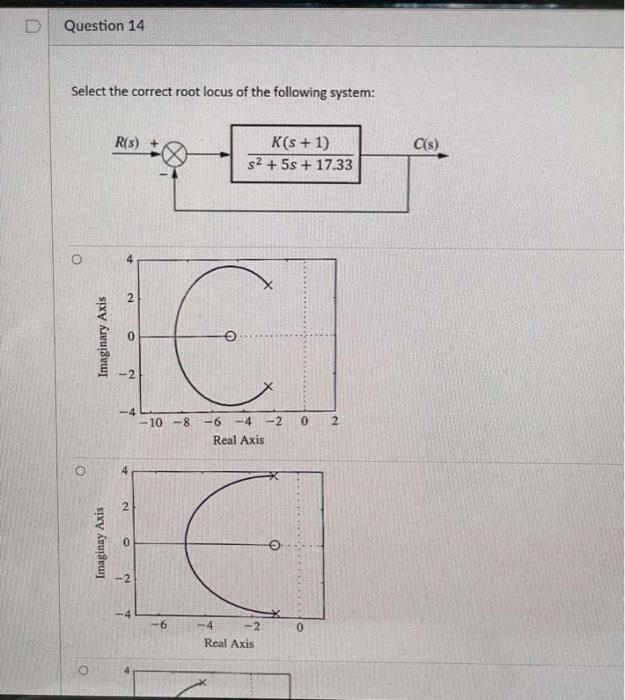

D Question 14 Select the correct root locus of the following system: R(s) C(s) K(s + 1) S2 + 5s + 17.33 4 Imaginary Axis
