(10 marks) PROBLEM #4 The 20 kg disk 4 of radius r - 0,2 m is attached to the 10-kg block B using the cable and pulley s

[answerhappygod]

10 Marks Problem 4 The 20 Kg Disk 4 Of Radius R 0 2 M Is Attached To The 10 Kg Block B Using The Cable And Pulley S 1 (32.45 KiB) Viewed 12 times

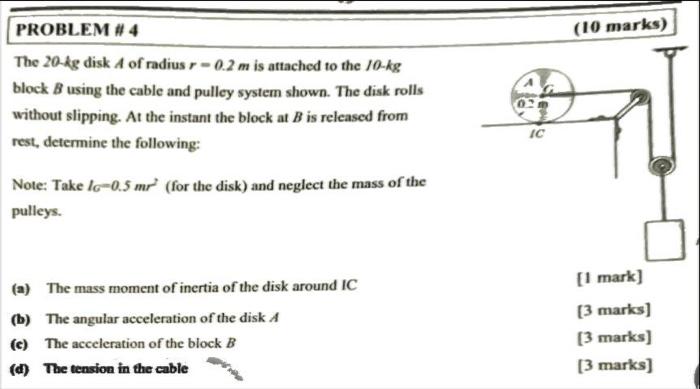

(10 marks) PROBLEM #4 The 20 kg disk 4 of radius r - 0,2 m is attached to the 10-kg block B using the cable and pulley system shown. The disk rolls without slipping. At the instant the block at Bis relcased from rest, determine the following: IC Note: Take Ic-0.5 mr (for the disk) and neglect the mass of the pulleys. (a) The mass moment of inertia of the disk around IC (b) The angular acceleration of the disk A (c) The acceleration of the block B (d) The tension in the cable [1 mark] [3 marks) [3 marks) [3 marks)
