A circular bar with radius 0.5 in, length 2 ft, shear modulus 11,000 ksi, and polar moment of inertia 0.098175 in^4, is

Post by answerhappygod »

A circular bar with radius 0.5 in, length 2 ft, shear modulus 11,000 ksi, and polar moment of inertia 0.098175 in^4, is embedded at one end and is subjected to a torsional moment at the free end.
a. Determine the angle of twist in degrees.
b. Determine the maximum shear stress.
T3= 8297 lb/ft

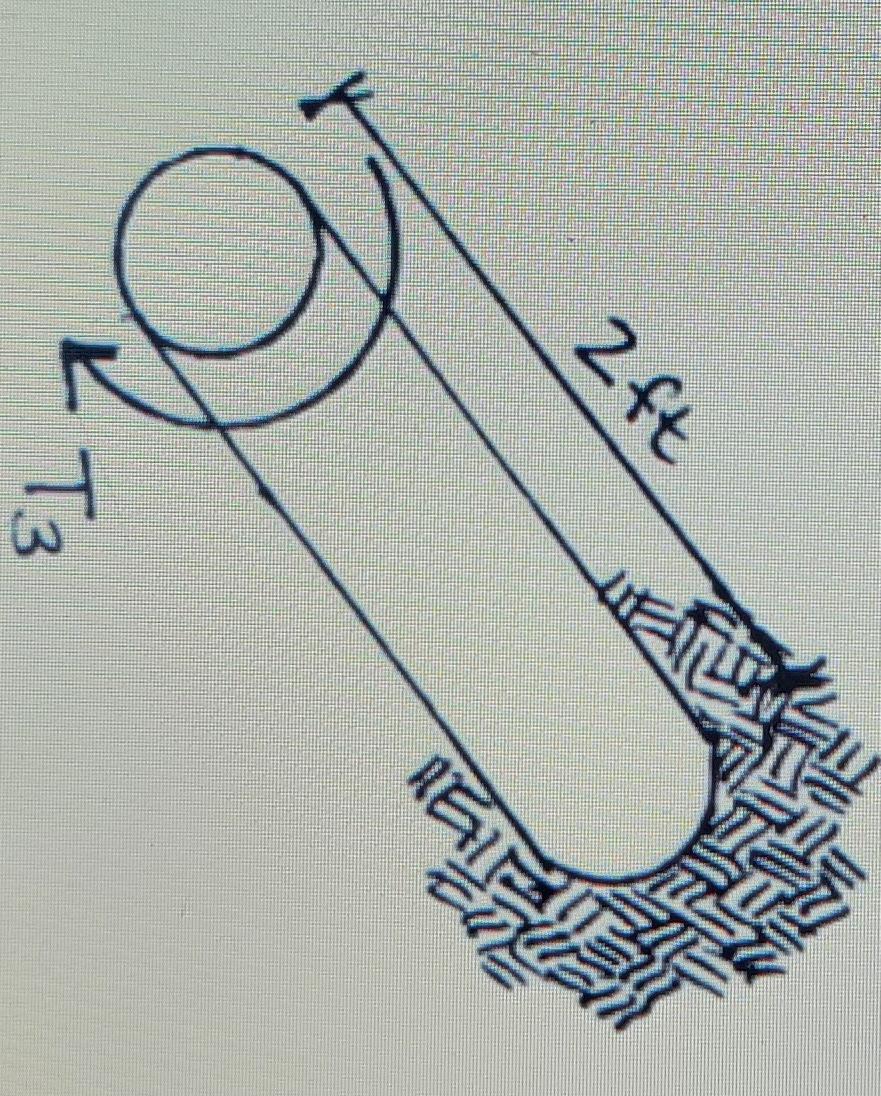

A Circular Bar With Radius 0 5 In Length 2 Ft Shear Modulus 11 000 Ksi And Polar Moment Of Inertia 0 098175 In 4 Is 1
A Circular Bar With Radius 0 5 In Length 2 Ft Shear Modulus 11 000 Ksi And Polar Moment Of Inertia 0 098175 In 4 Is 1 (252.5 KiB) Viewed 9 times
2ft RET T3
