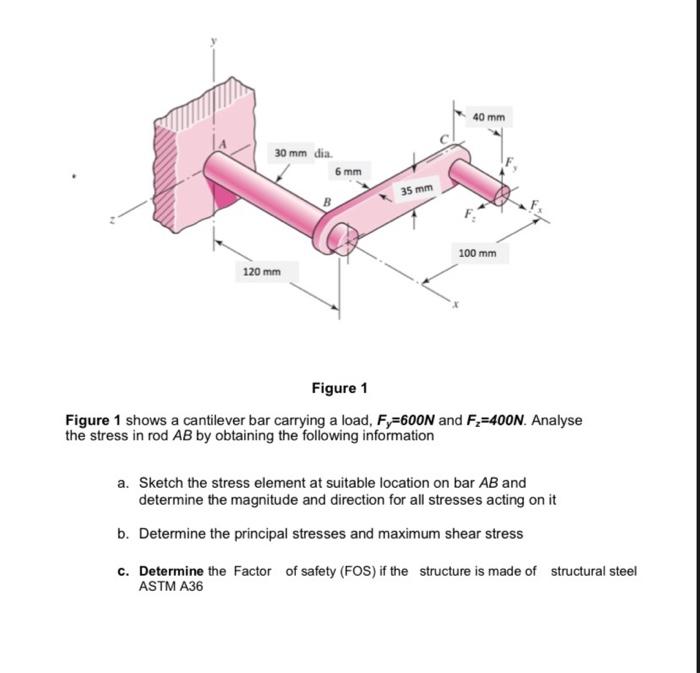

40 mm 30 mm dia. 6 mm 35 mm 100 mm 120 mm Figure 1 Figure 1 shows a cantilever bar carrying a load, Fy=600N and F;=400N.
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
40 mm 30 mm dia. 6 mm 35 mm 100 mm 120 mm Figure 1 Figure 1 shows a cantilever bar carrying a load, Fy=600N and F;=400N.
40 mm 30 mm dia. 6 mm 35 mm 100 mm 120 mm Figure 1 Figure 1 shows a cantilever bar carrying a load, Fy=600N and F;=400N. Analyse the stress in rod AB by obtaining the following information a. Sketch the stress element at suitable location on bar AB and determine the magnitude and direction for all stresses acting on it b. Determine the principal stresses and maximum shear stress c. Determine the Factor of safety (FOS) if the structure is made of structural steel ASTM A36
