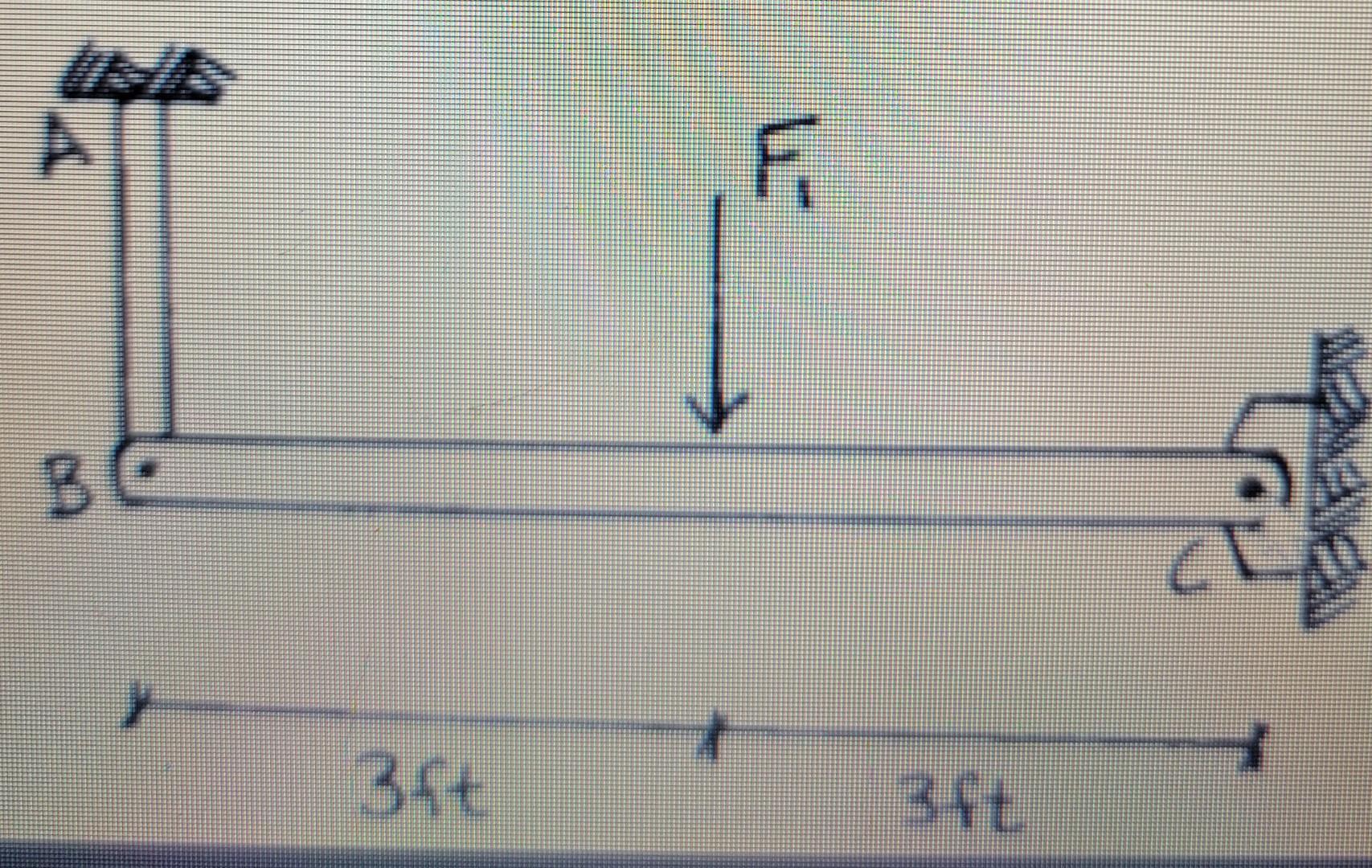

Beam BC is supported by two pins. 5/8 in. diameter, the one on the right holds it from the bar AB. Beam BC has a sectional area of 2.25 in and bar AB has a sectional area of 1.25 in.
a. Determine the average normal stress in the bar AB.
b. Determine the average shear stress on pin C.
F1= 7928 lb
Beam Bc Is Supported By Two Pins 5 8 In Diameter The One On The Right Holds It From The Bar Ab Beam Bc Has A Sect 1 (447.9 KiB) Viewed 14 times
A Fi BE 35+ 3ft
