to each part D) A small cast iron (Sut-22 ksi, Suc-80 ksi, E- 14 Mpsi) cylinder is under pure torsion. The maximum shear

[answerhappygod]

To Each Part D A Small Cast Iron Sut 22 Ksi Suc 80 Ksi E 14 Mpsi Cylinder Is Under Pure Torsion The Maximum Shear 1 (18.58 KiB) Viewed 11 times

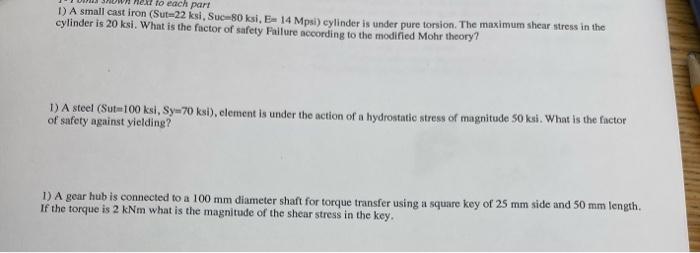

to each part D) A small cast iron (Sut-22 ksi, Suc-80 ksi, E- 14 Mpsi) cylinder is under pure torsion. The maximum shear stress in the cylinder is 20 ksi. What is the factor of safety Failure according to the modified Mohr theory? 1) A steel (Sut-100 ksi, Sy-70 ksi), element is under the action of a hydrostatic stress of magnitude 50 ks. What is the factor of safety against yielding? 1) A gear hub is connected to a 100 mm diameter shaft for torque transfer using a square key of 25 mm side and 50 mm length If the torque is 2 kNm what is the magnitude of the shear stress in the key.
