A gear reduction system consists of three gears A, B, and C. Knowing that gear A rotates clockwise with a constant angul

Post by answerhappygod »

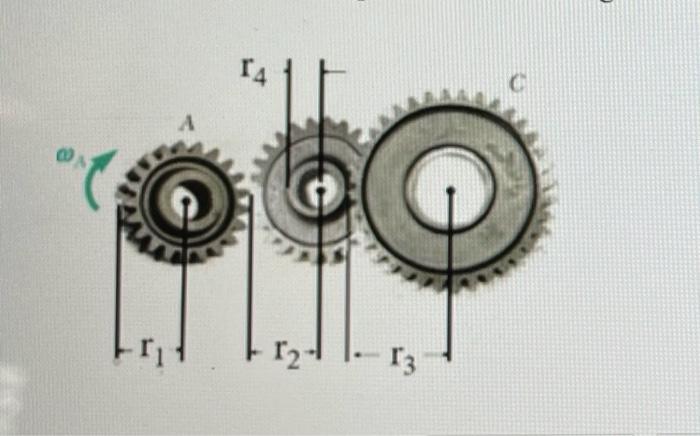

A gear reduction system consists of three gears A, B, and C. Knowing that gear A rotates clockwise with a constant angular velocity WA = 425
rpm, determine the angular velocities of gears B and C, when r1 = 4 in, r2 = 6 in, r3 = 6 in and r4 = 3 in.
Please detail every step
A Gear Reduction System Consists Of Three Gears A B And C Knowing That Gear A Rotates Clockwise With A Constant Angul 1
A Gear Reduction System Consists Of Three Gears A B And C Knowing That Gear A Rotates Clockwise With A Constant Angul 1 (37.64 KiB) Viewed 22 times
V 12 13
