Problem 2: Water (v=1.00* 10 m²/s) needs to be drained, in the previous problem, from the reservoir to the well. As such

[answerhappygod]

Problem 2 Water V 1 00 10 M S Needs To Be Drained In The Previous Problem From The Reservoir To The Well As Such 1 (67.83 KiB) Viewed 12 times

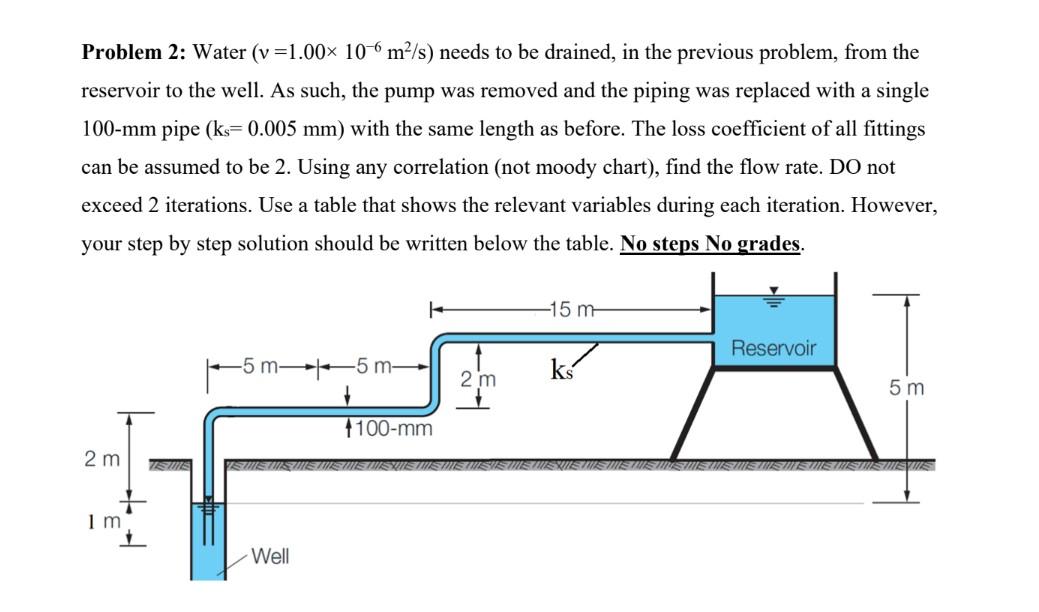

Problem 2: Water (v=1.00* 10 m²/s) needs to be drained, in the previous problem, from the reservoir to the well. As such, the pump was removed and the piping was replaced with a single 100-mm pipe (ks=0.005 mm) with the same length as before. The loss coefficient of all fittings can be assumed to be 2. Using any correlation (not moody chart), find the flow rate. DO not exceed 2 iterations. Use a table that shows the relevant variables during each iteration. However, your step by step solution should be written below the table. No steps No grades. -15 m Reservoir -5 m- -5 2 m ks 5 m 100-mm 2 m 7 TIIS SUSTUSTIS 1 m Well
