1 Determine the relative displacement in A (SA) and in C (oc). Sketch first the free body diagram, the shear force diagr

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

1 Determine the relative displacement in A (SA) and in C (oc). Sketch first the free body diagram, the shear force diagr

Post by answerhappygod »

1 Determine The Relative Displacement In A Sa And In C Oc Sketch First The Free Body Diagram The Shear Force Diagr 1
1 Determine The Relative Displacement In A Sa And In C Oc Sketch First The Free Body Diagram The Shear Force Diagr 1 (57.2 KiB) Viewed 11 times

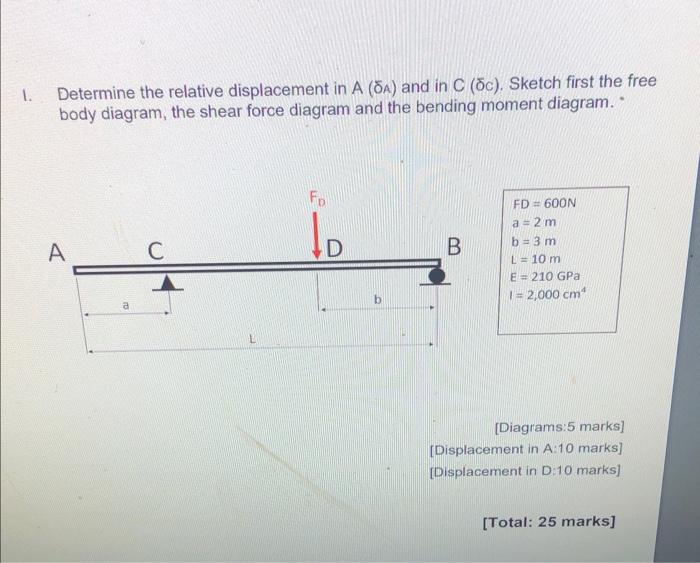

1 Determine the relative displacement in A (SA) and in C (oc). Sketch first the free body diagram, the shear force diagram and the bending moment diagram." to D с D B FD = 600N a = 2 m b = 3 m L = 10 m E = 210 GPa 12,000 cm b a L [Diagrams:5 marks] [Displacement in A:10 marks] [Displacement in D:10 marks) [Total: 25 marks]
