Problem (6): Rigid bar ABCD is supported by two vertical bars. There is no strain in the vertical bars before load P is

Post by answerhappygod »

Problem 6 Rigid Bar Abcd Is Supported By Two Vertical Bars There Is No Strain In The Vertical Bars Before Load P Is 1
Problem 6 Rigid Bar Abcd Is Supported By Two Vertical Bars There Is No Strain In The Vertical Bars Before Load P Is 1 (61.64 KiB) Viewed 13 times

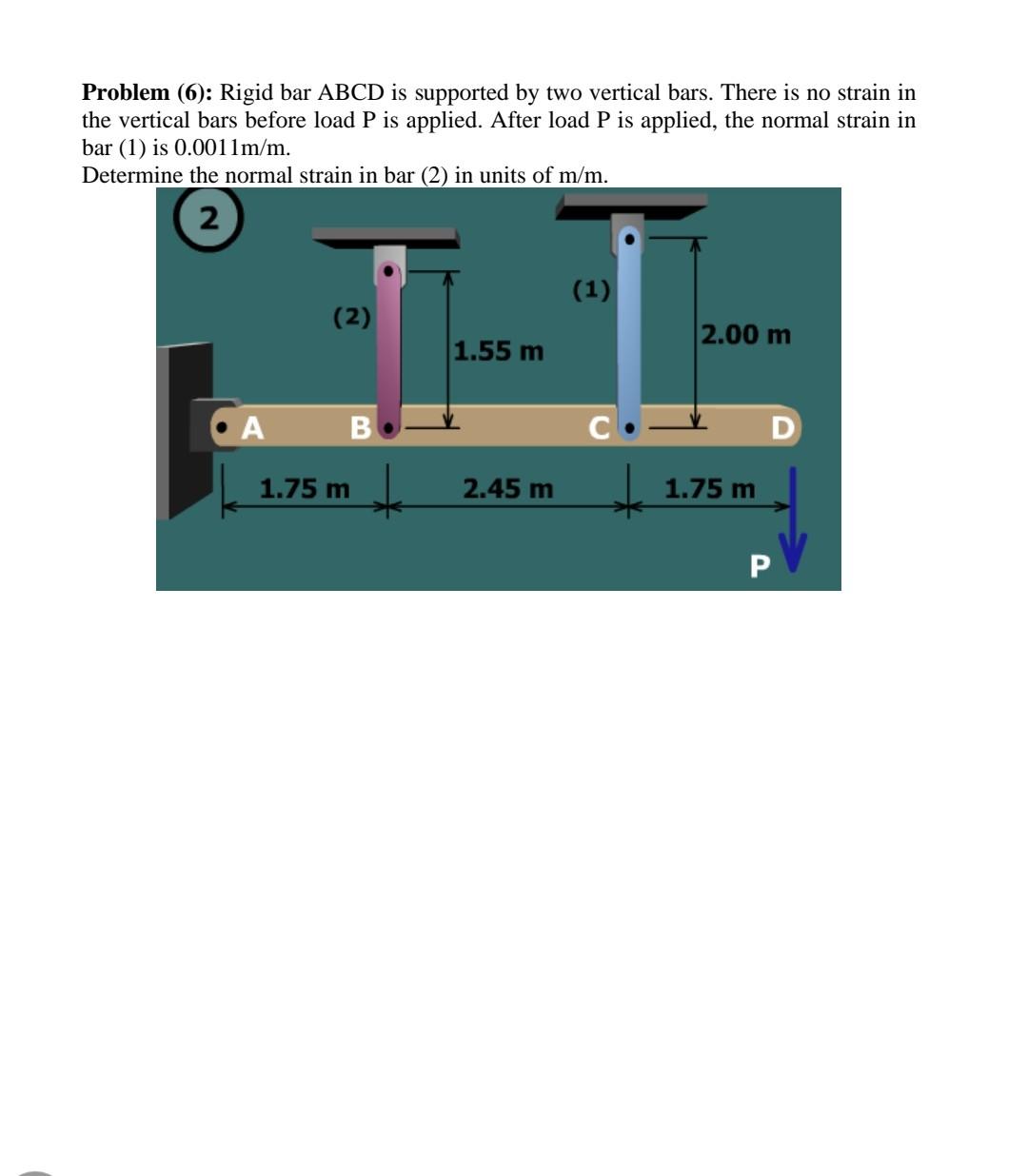

Problem (6): Rigid bar ABCD is supported by two vertical bars. There is no strain in the vertical bars before load P is applied. After load P is applied, the normal strain in bar (1) is 0.0011m/m. Determine the normal strain in bar (2) in units of m/m. 2 (1) (2) 2.00 m 1.55 m A B 1.75 m 2.45 m 1.75 m P
