A rod is made from two segments: AB is steel and BC is brass. It is fixed at its ends and subjected to a torque of T = 7

Post by answerhappygod »

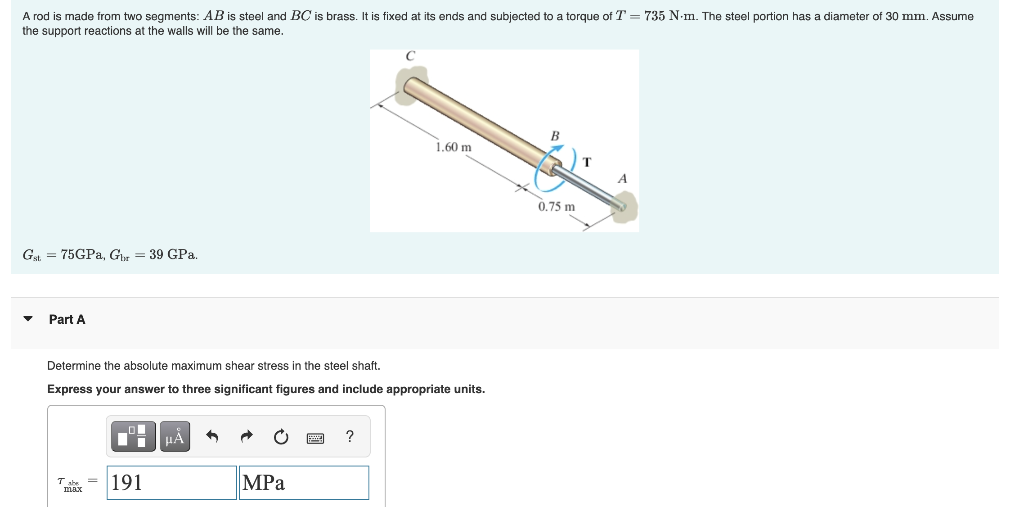

A Rod Is Made From Two Segments Ab Is Steel And Bc Is Brass It Is Fixed At Its Ends And Subjected To A Torque Of T 7 1
A Rod Is Made From Two Segments Ab Is Steel And Bc Is Brass It Is Fixed At Its Ends And Subjected To A Torque Of T 7 1 (64.16 KiB) Viewed 10 times
A rod is made from two segments: AB is steel and BC is brass. It is fixed at its ends and subjected to a torque of T = 735 N.m. The steel portion has a diameter of 30 mm. Assume the support reactions at the walls will be the same. B 1.60 m T A 0.75 m Gst = 75GPa, Gor = 39 GPa. Part A Determine the absolute maximum shear stress the steel shaft. Express your answer to three significant figures and include appropriate units. HA ? 191 MPa max
