Part A Determine the maximum allowable torque that can be applied at A. Express your answer to three significant figures

[answerhappygod]

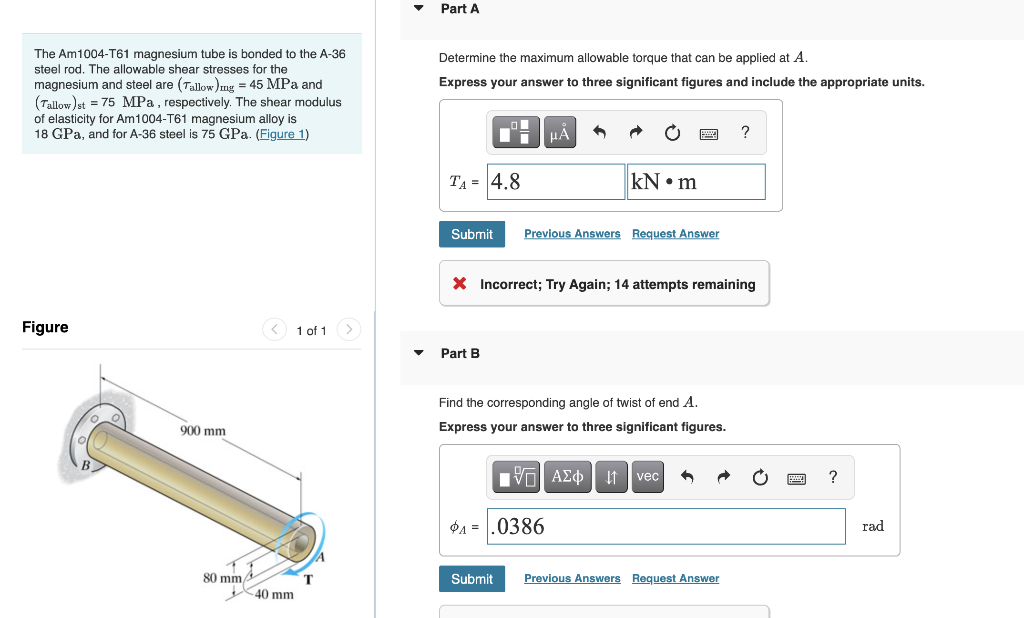

Part A Determine The Maximum Allowable Torque That Can Be Applied At A Express Your Answer To Three Significant Figures 1 (135.56 KiB) Viewed 15 times

Part A Determine the maximum allowable torque that can be applied at A. Express your answer to three significant figures and include the appropriate units. The Am 1004-T61 magnesium tube bonded to the A-36 steel rod. The allowable shear stresses for the magnesium and steel are (Tallow)mg = 45 MPa and (Tallow)st = 75 MPa, respectively. The shear modulus of elasticity for Am 1004-T61 magnesium alloy is 18 GPa, and for A-36 steel is 75 GPa (Figure 1) μΑ ? TA = 4.8 kN•m Submit Previous Answers Request Answer X Incorrect; Try Again; 14 attempts remaining Figure 1 of 1 Part B Find the corresponding angle of twist of end A. Express your answer to three significant figures. 900 mm IVO AED IT vec ? 01 = .0386 rad 80 mm Submit Previous Answers Request Answer 40 mm
