Question 4 Consider the following system: R(S) Y(s) G (s) G2(s) Gz(s) s+50 where G7 (9) = 10, G3(s) = 1, and Gz(s) = 52+

[answerhappygod]

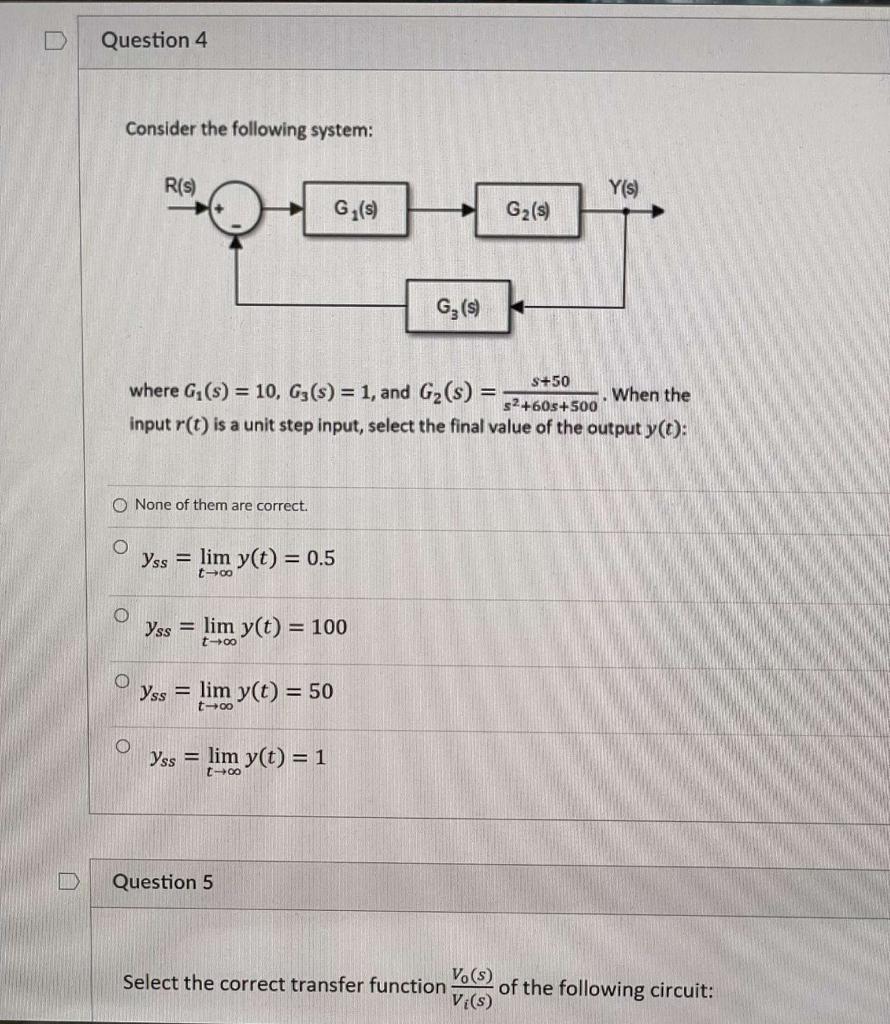

Question 4 Consider The Following System R S Y S G S G2 S Gz S S 50 Where G7 9 10 G3 S 1 And Gz S 52 1 (145.94 KiB) Viewed 11 times

Question 4 Consider the following system: R(S) Y(s) G (s) G2(s) Gz(s) s+50 where G7 (9) = 10, G3(s) = 1, and Gz(s) = 52+60+500 . When the input r(t) is a unit step input, select the final value of the output y(t): None of them are correct. Yss = lim y(t) = 0.5 t-00 Yss = lim y(t) = 100 t-00 Yss = lim y(t) = 50 t-00 Yss = lim y(t) = 1 Question 5 V.(s) Select the correct transfer function of the following circuit: Vi(s)
