7–77. Draw the shear and moment diagrams for the beam. The supports at A and B are a thrust and journal bearing, respect

Post by answerhappygod »

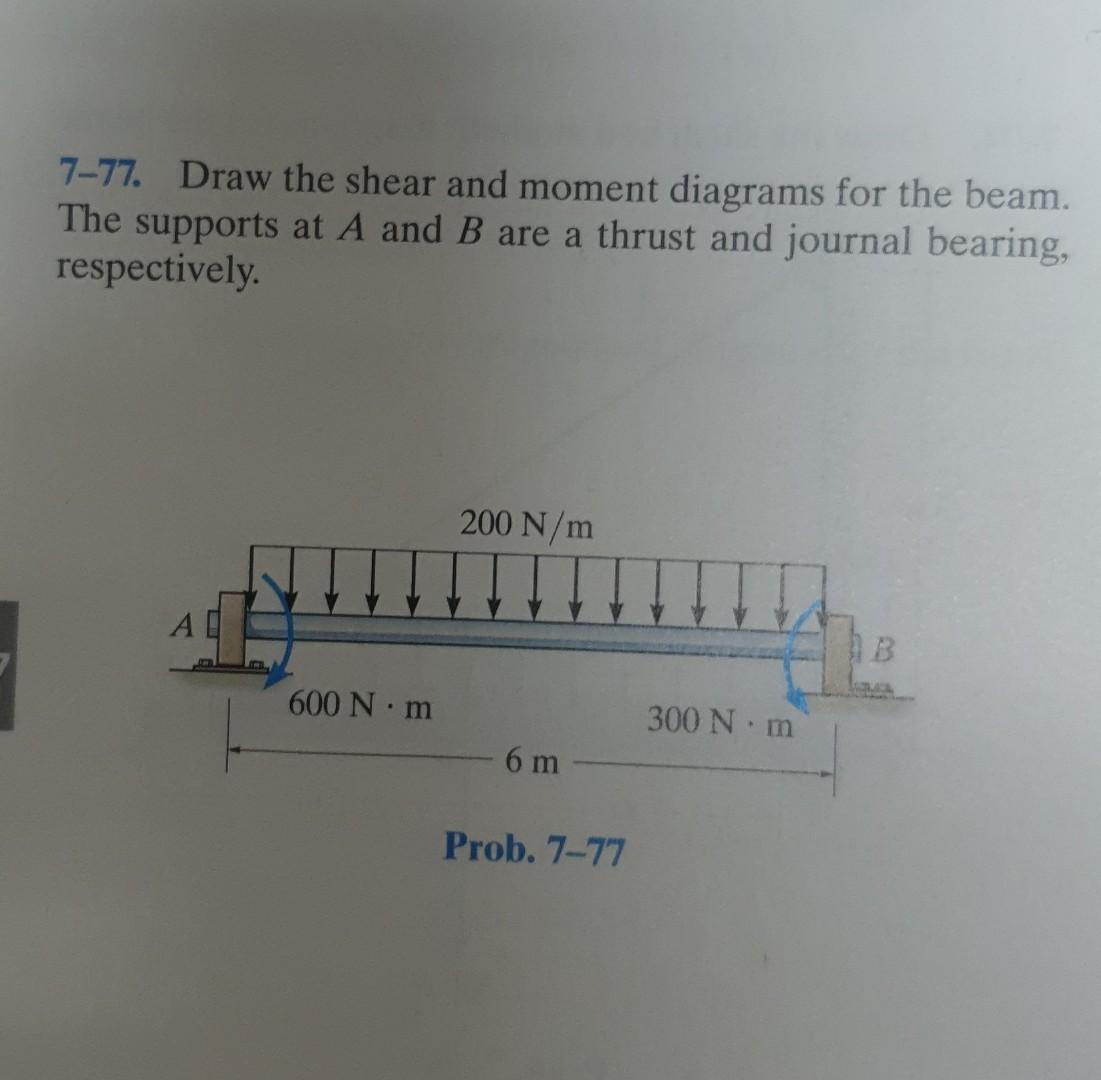

7 77 Draw The Shear And Moment Diagrams For The Beam The Supports At A And B Are A Thrust And Journal Bearing Respect 1
7 77 Draw The Shear And Moment Diagrams For The Beam The Supports At A And B Are A Thrust And Journal Bearing Respect 1 (60.36 KiB) Viewed 9 times
7–77. Draw the shear and moment diagrams for the beam. The supports at A and B are a thrust and journal bearing, respectively. 200 N/m AO 8 600 Nm 300 Nm 6 m Prob. 7-77
