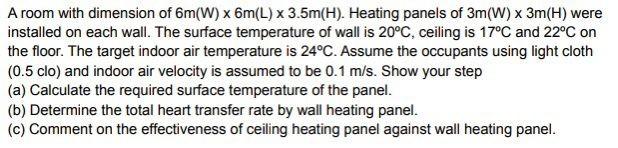

A room with dimension of 6m(W) x 6m(L) x 3.5m(H). Heating pan
A Room With Dimension Of 6m W X 6m L X 3 5m H Heating Pan Els Of 3m W X 3m H Were Installed On Each Wall The Surf 1 (29.78 KiB) Viewed 11 times
els of 3m(W) x 3m(H) were installed on each wall. The surface temperature of wall is 20ºC, ceiling is 17ºC and 22ºC on the floor. The target indoor air temperature is 24ºC. Assume the occupants using light cloth (0.5 clo) and indoor air velocity is assumed to be 0.1 m/s. Show your step
(a) Calculate the required surface temperature of the panel.
(b) Determine the total heart transfer rate by wall heating panel.
(c) Comment on the effectiveness of ceiling heating panel against wall heating panel.
A room with dimension of 6m(W) x 6m(L) x 3.5m(H). Heating panels of 3m(W) x 3m(H) were installed on each wall. The surface temperature of wall is 20°C, ceiling is 17°C and 22°C on the floor. The target indoor air temperature is 24°C. Assume the occupants using light cloth (0.5 clo) and indoor air velocity is assumed to be 0.1 m/s. Show your step (a) Calculate the required surface temperature of the panel. (b) Determine the total heart transfer rate by wall heating panel. (c) Comment on the effectiveness of ceiling heating panel against wall heating panel.
