Q2 The shaft is supported at its ends by two bearings A and Band is subjected to the forces applied to the pulleys fixed

Post by answerhappygod »

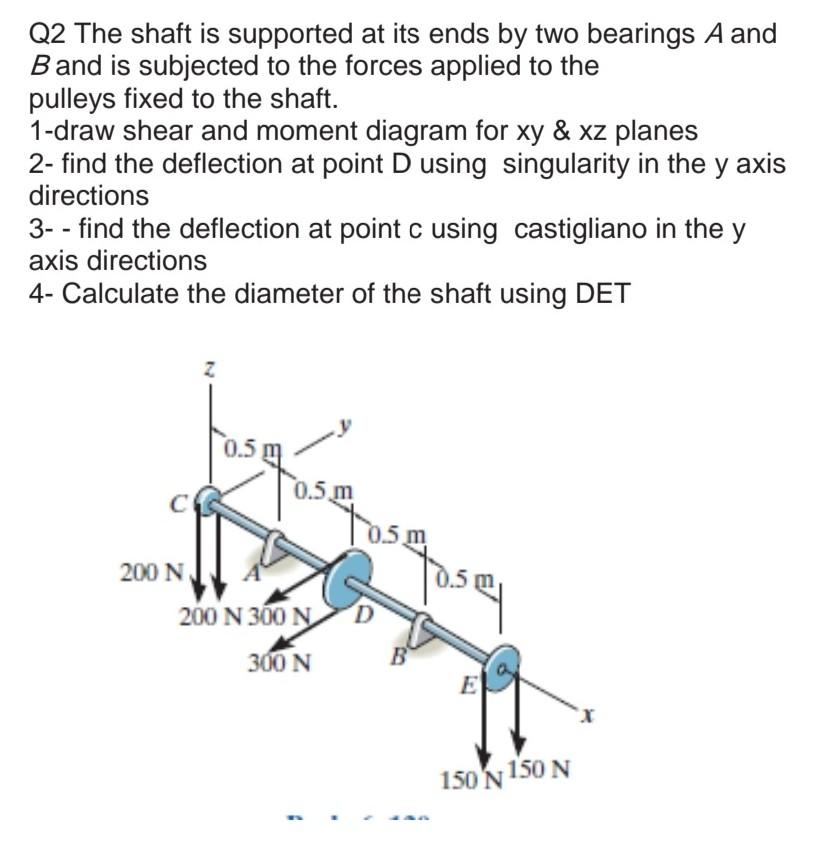

Q2 The Shaft Is Supported At Its Ends By Two Bearings A And Band Is Subjected To The Forces Applied To The Pulleys Fixed 1
Q2 The Shaft Is Supported At Its Ends By Two Bearings A And Band Is Subjected To The Forces Applied To The Pulleys Fixed 1 (64.62 KiB) Viewed 17 times
Q2 The shaft is supported at its ends by two bearings A and Band is subjected to the forces applied to the pulleys fixed to the shaft. 1-draw shear and moment diagram for xy & xz planes 2- find the deflection at point D using singularity in the y axis directions 3- - find the deflection at point c using castigliano in the y axis directions 4- Calculate the diameter of the shaft using DET 0.5 m C Tos 200 N N 200 N 300 N D 300 N 150x150N
