Q1) A G-code to machine the part given below is given. Fill the blanks to obtain the resulting work piece which is shown

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q1) A G-code to machine the part given below is given. Fill the blanks to obtain the resulting work piece which is shown

Post by answerhappygod »

Q1 A G Code To Machine The Part Given Below Is Given Fill The Blanks To Obtain The Resulting Work Piece Which Is Shown 1
Q1 A G Code To Machine The Part Given Below Is Given Fill The Blanks To Obtain The Resulting Work Piece Which Is Shown 1 (151.74 KiB) Viewed 13 times

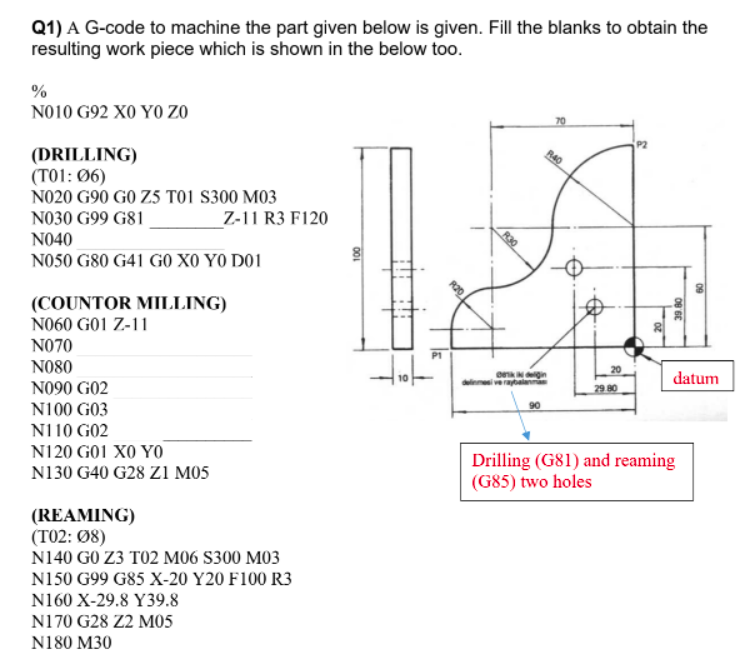

Q1) A G-code to machine the part given below is given. Fill the blanks to obtain the resulting work piece which is shown in the below too. % N010 G92 XO YO ZO R40 (DRILLING) (T01:06) N020 G90 GO Z5 T01 S300 M03 N030 G99 G81 2-11 R3 F120 N040 N050 G80 G41 GO XO YO D01 R3 100 39.80 P1 20 BIO datum (COUNTOR MILLING) N060 G01 Z-11 N070 N080 N090 G02 N100 G03 N110 G02 N120 G01 XO YO N130 G40 G28 Z1 M05 29.80 Drilling (G81) and reaming (G85) two holes (REAMING) (T02:08) N140 GO Z3 T02 M06 S300 M03 N150 G99 G85 X-20 Y20 F100 R3 N160 X-29.8 Y39.8 N170 G28 Z2 M05 N180 M30
