DETERMINE THE FORCE (b) IN MEMBER AB OF THE ROOF TRUSS SHOWN GIVEN THE DATA BELOW: F1 = 75 lb F2 = 180 lb - 47 degree a

Post by answerhappygod »

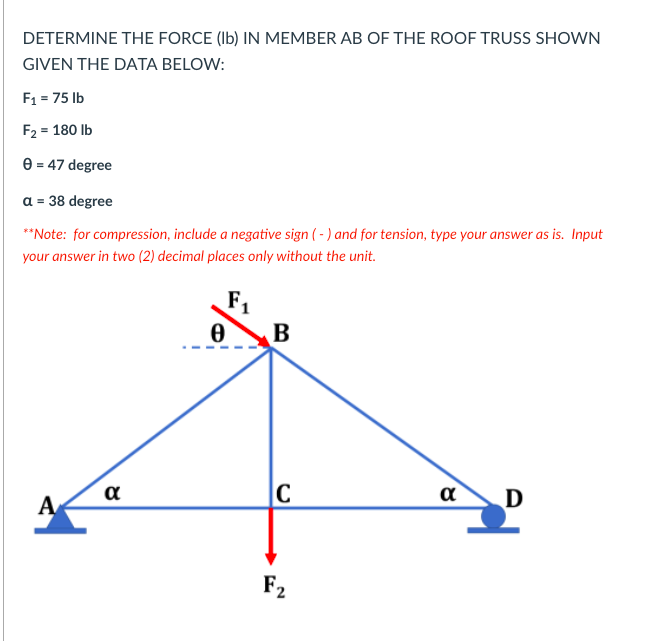

Determine The Force B In Member Ab Of The Roof Truss Shown Given The Data Below F1 75 Lb F2 180 Lb 47 Degree A 1
Determine The Force B In Member Ab Of The Roof Truss Shown Given The Data Below F1 75 Lb F2 180 Lb 47 Degree A 1 (47.66 KiB) Viewed 10 times
DETERMINE THE FORCE (b) IN MEMBER AB OF THE ROOF TRUSS SHOWN GIVEN THE DATA BELOW: F1 = 75 lb F2 = 180 lb - 47 degree a = 38 degree **Note: for compression, include a negative sign (-) and for tension, type your answer as is. Input your answer in two (2) decimal places only without the unit. B a C α Α. D F2
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
