Determine the geometry of each element of the truss (lengths and
angles)
Determine the axial force of each member and identify whether it
is in tension or compression. (Present diagrams)
Assuming a rectangular shape with height=H and width=H/2,
determine the dimensions of each member if the allowable stress is
205kPa.

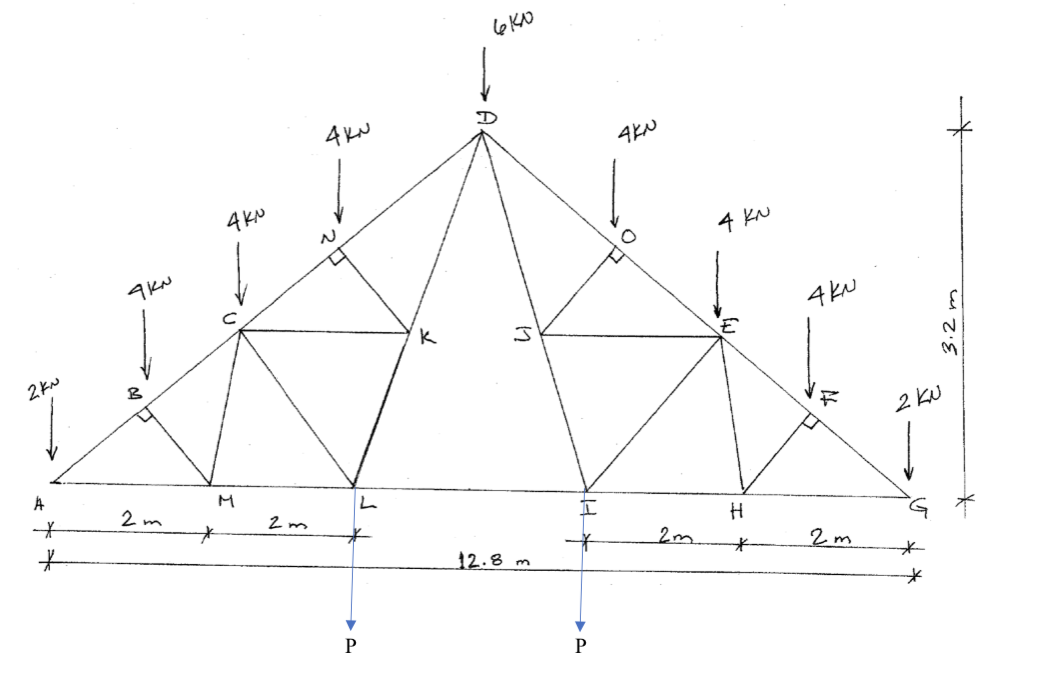

Determine The Geometry Of Each Element Of The Truss Lengths And Angles Determine The Axial Force Of Each Member And Id 1 (100.54 KiB) Viewed 13 times
660 + 4kn 4kw 4k 4 KN 9kn 4kn E wzE k 17 2 KN F 2 KN A M " IL I 2 m H 2 m * * 2m 2m # 12.8 m P P
