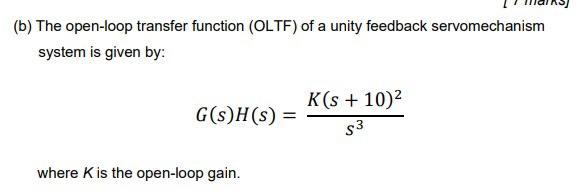

(b) The open-loop transfer function (OLTF) of a unity feedback servomechanism system is given by: K(s + 10) G(s)H(s) = 53 where K is the open-loop gain.
(1) investigate the condition(s) for the stability of the OLTF using the contour mapping technique and the Nyquist stability criterion. 17 marlo
