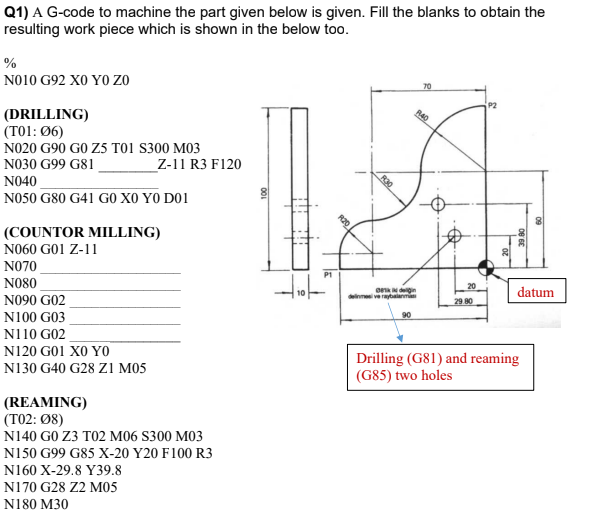

- Q1 A G Code To Machine The Part Given Below Is Given Fill The Blanks To Obtain The Resulting Work Piece Which Is Shown 1 (87.42 KiB) Viewed 12 times
Q1) A G-code to machine the part given below is given. Fill the blanks to obtain the resulting work piece which is shown
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Q1) A G-code to machine the part given below is given. Fill the blanks to obtain the resulting work piece which is shown
Q1) A G-code to machine the part given below is given. Fill the blanks to obtain the resulting work piece which is shown in the below too. % N010 G92 XO YO ZO 70 P2 R40 (DRILLING) (T01:06) N020 G90 GO Z5 TOI S300 M03 N030 G99 G81 _Z-11 R3 F120 N040 N050 G80 G41 GO XO YO DOI RBO 8 P1 (COUNTOR MILLING) N060 GOL Z-11 N070 N080 N090 GO2 N100 G03 N110 GO2 N120 GOI XO YO N130 G40 G28 ZI M05 ray datum 29.80 90 Drilling (G81) and reaming (G85) two holes (REAMING) (T02:08) N140 GO Z3 TO2 M06 S300 M03 N150 G99 G85 X-20 Y20 F100 R3 N160 X-29.8 Y39.8 N170 G28 Z2 M05 N180 M30
