You are given the following helical gear set -a pinion with 15 teeth and a gear with 45 teeth, both with a helix angle o

Post by answerhappygod »

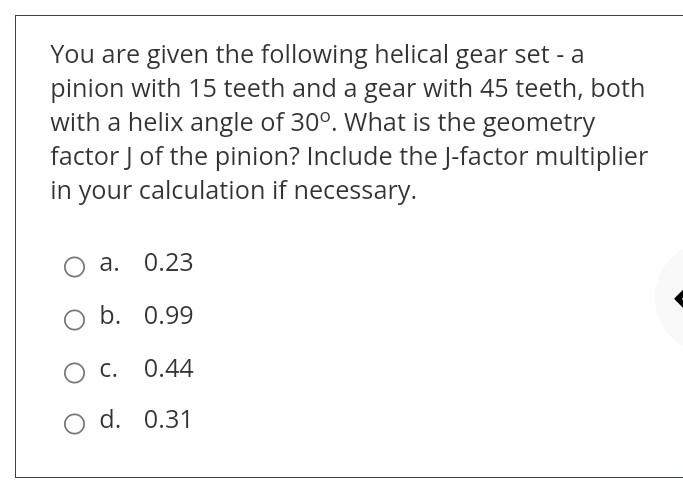

You Are Given The Following Helical Gear Set A Pinion With 15 Teeth And A Gear With 45 Teeth Both With A Helix Angle O 1
You Are Given The Following Helical Gear Set A Pinion With 15 Teeth And A Gear With 45 Teeth Both With A Helix Angle O 1 (35.43 KiB) Viewed 23 times
ASAP please
You are given the following helical gear set -a pinion with 15 teeth and a gear with 45 teeth, both with a helix angle of 30°. What is the geometry factor J of the pinion? Include the J-factor multiplier in your calculation if necessary. O a. 0.23 O b b. 0.99 OC. 0.44 O d. 0.31
