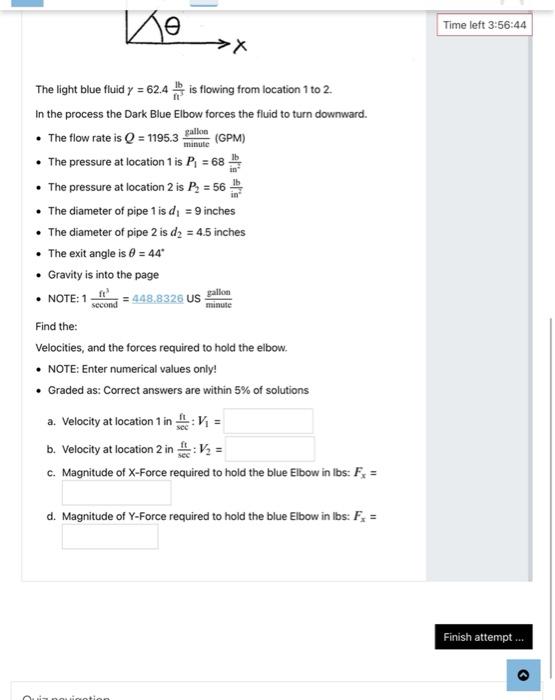

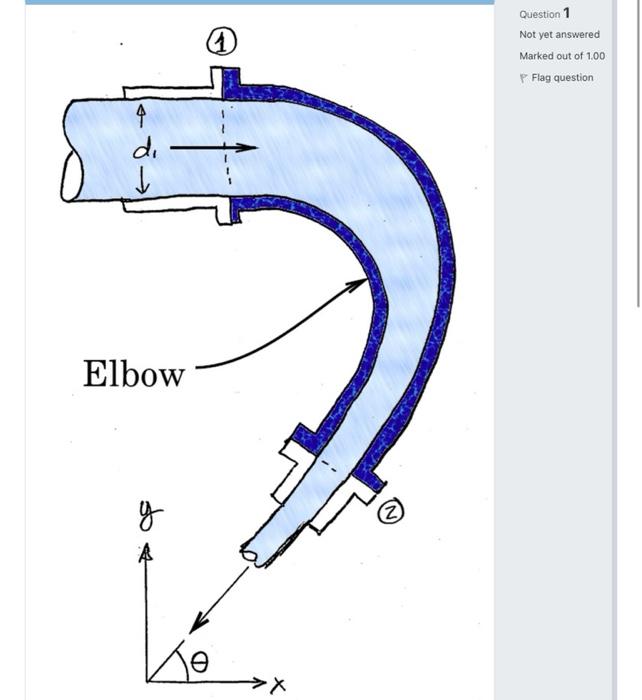

Иө Time left 3:56:44 gallon minute The light blue fluid y = 62.4 is flowing from location 1 to 2. In the process the Dark Blue Elbow forces the fluid to turn downward. . The flow rate is Q = 1195.3 (GPM) The pressure at location 1 is P = 68 The pressure at location 2 is P2 = 56 The diameter of pipe 1 is di = 9 inches • The diameter of pipe 2 is d2 = 4.5 inches . The exit angle is 0 = 44* • Gravity is into the page . NOTE: 1 448.8326 US Find the: Velocities, and the forces required to hold the elbow. . NOTE: Enter numerical values only! • Graded as: Correct answers are within 5% of solutions a. Velocity at location 1 in V1 = b. Velocity at location 2 in 1 = C. Magnitude of X-Force required to hold the blue Elbow in lbs: Fx = gallon minute second d. Magnitude of Y-Force required to hold the blue Elbow in lbs: F. = Finish attempt ... nouinition
