C D 3 Kn M Problem For The Beam And Loading Shown In The Given Figure Obtain The Shearing Force And Bending Moment V 1 (36.14 KiB) Viewed 26 times
a=1
b=9
c=0
d=2

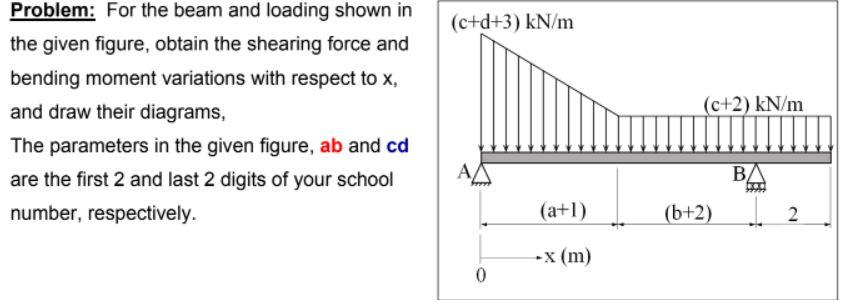

(c+d+3) kN/m Problem: For the beam and loading shown in the given figure, obtain the shearing force and bending moment variations with respect to x, and draw their diagrams, The parameters in the given figure, ab and cd are the first 2 and last 2 digits of your school number, respectively. (c+2) kN/m AA BA BOT (a+1) (6+2) 2 -X (m) 0
