mechanics

Post by answerhappygod »

mechanics
Mechanics 1
Mechanics 1 (18.69 KiB) Viewed 20 times

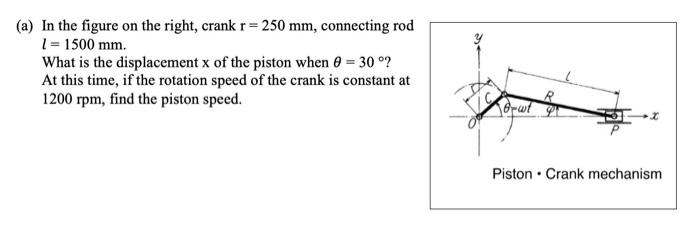

(a) In the figure on the right, crank r= 250 mm, connecting rod 1 = 1500 mm. What is the displacement x of the piston when 0 = 300? At this time, if the rotation speed of the crank is constant at 1200 rpm, find the piston speed. R Piston. Crank mechanism .
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
