Problem 8: Using the method of superposition, combined with the unit force method, determine the support reactions and p

Post by answerhappygod »

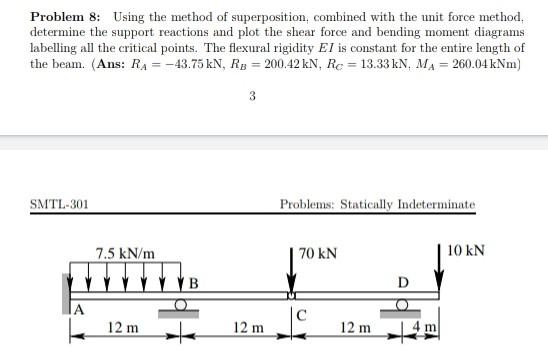

Problem 8 Using The Method Of Superposition Combined With The Unit Force Method Determine The Support Reactions And P 1
Problem 8 Using The Method Of Superposition Combined With The Unit Force Method Determine The Support Reactions And P 1 (26.11 KiB) Viewed 22 times
Problem 8: Using the method of superposition, combined with the unit force method, determine the support reactions and plot the shear force and bending moment diagrams labelling all the critical points. The flexural rigidity El is constant for the entire length of the beam. (Ans: RA= -43.75 kN, RB = 200.42 kN, Rc = 13.33 kN, MA = 260.04 kNm) 3 SMTL-301 Problems: Statically Indeterminate 7.5 kN/m 70 KN 10 KN B D o c 12 m 12 m 12 m m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
