Pls help solve by hand question iv below, need
urgently. Pls NOTE that the values of the letters A and B marked in
yellow are 5 and 4 respectively. Pls give a detailed and concise
solution. Upvote assured, thanks!
Pls Help Solve By Hand Question Iv Below Need Urgently Pls Note That The Values Of The Letters A And B Marked In Yello 1 (11.23 KiB) Viewed 10 times
Pls Help Solve By Hand Question Iv Below Need Urgently Pls Note That The Values Of The Letters A And B Marked In Yello 2 (12.62 KiB) Viewed 10 times

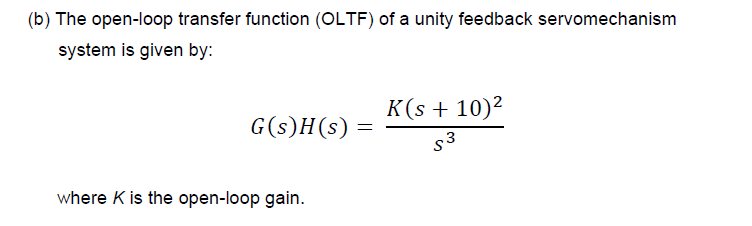

(b) The open-loop transfer function (OLTF) of a unity feedback servomechanism system is given by: K(s + 10) G(s)H(s) = 53 where K is the open-loop gain.

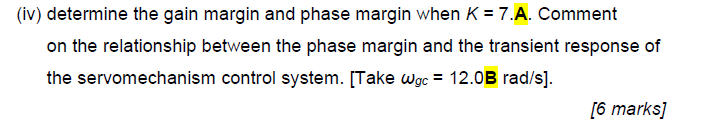

(iv) determine the gain margin and phase margin when K = 7.A. Comment on the relationship between the phase margin and the transient response of the servomechanism control system. [Take Wgc = 12.0B rad/s]. [6 marks]
