No Sharing Only 1 Page Of Formula Sheet No Phones 200 Worm Gec Ar Trains Everse 3 25pts The Brake Shown In The F 1 (68.79 KiB) Viewed 13 times

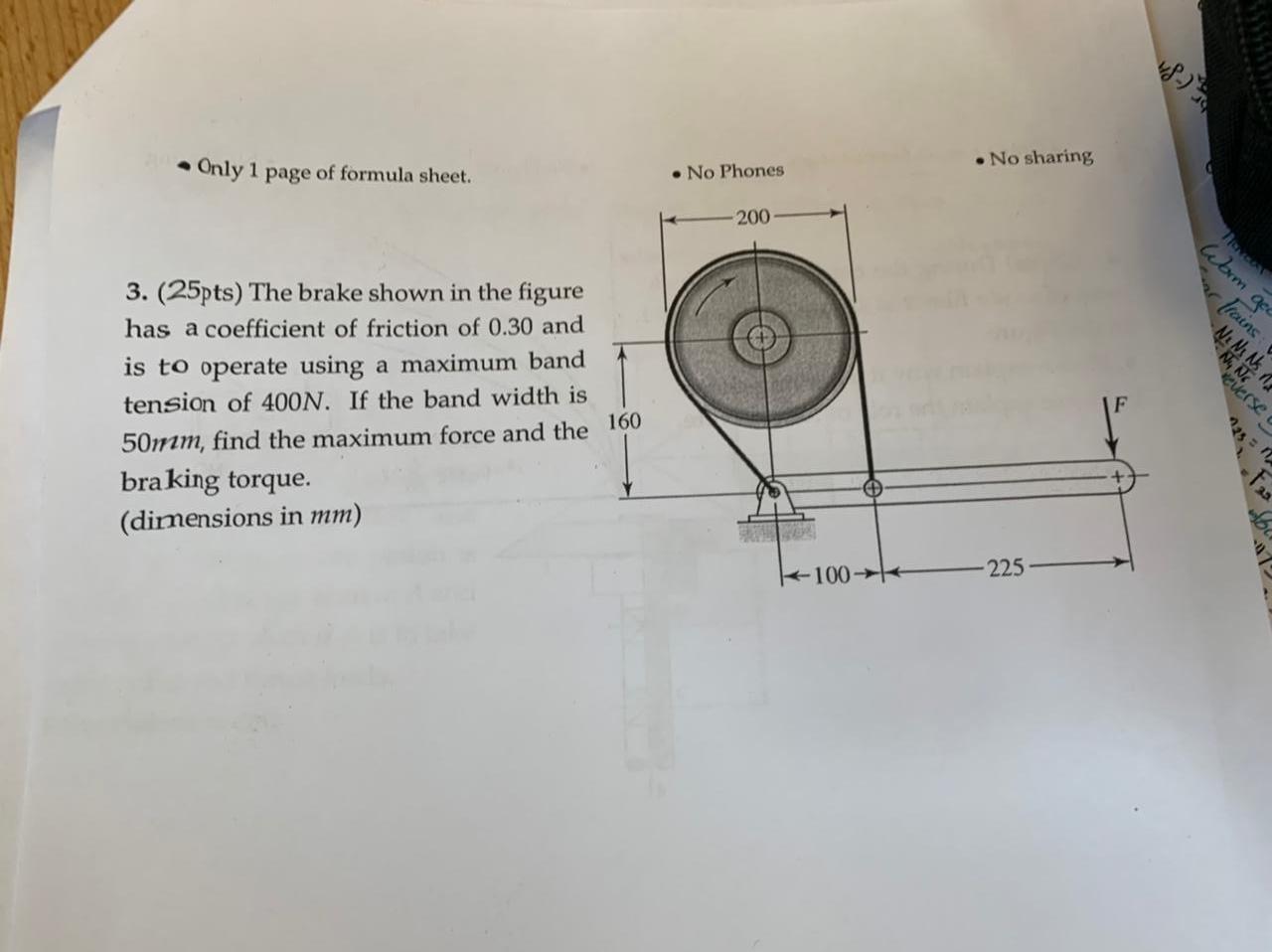

• No sharing Only 1 page of formula sheet. • No Phones 200 Worm gec ar trains everse 3. (25pts) The brake shown in the figure has a coefficient of friction of 0.30 and is to operate using a maximum band tension of 400N. If the band width is 50mm, find the maximum force and the 160 bra king torque. (dimensions in mm) +100 225
• No sharing • No Phones are a = shoe . Only 1 page of formula sheet. 2. (25pts) In the double short-shoe drum brake shown, the dimensions 12cm , b 8cm, e = 3cm , r = 6cm and 0 = 25. Assum- ing Pmax - 1.4Mpa, brake width of F, 5cm and the friction coefficient of 0.3, determine: a. The torque capacity. b. What value of c will make it self- locking 01 Te drum e 02 Fa C shoe
