Q1) determine the force in members CD, CF, and CG and state if these members are in tension or compression. Find the rea

Post by answerhappygod »

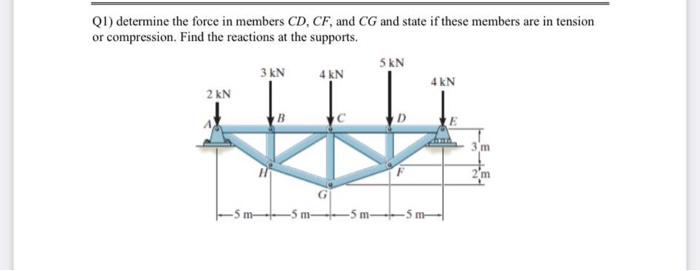

Q1 Determine The Force In Members Cd Cf And Cg And State If These Members Are In Tension Or Compression Find The Rea 1
Q1 Determine The Force In Members Cd Cf And Cg And State If These Members Are In Tension Or Compression Find The Rea 1 (16.09 KiB) Viewed 15 times
Q1) determine the force in members CD, CF, and CG and state if these members are in tension or compression. Find the reactions at the supports. 5kN 3 KN 4 KN 4 kN 2 KN B 3 m -5m- -5m-5m-5m-
