For a mechanical structural system, such as automotive chassis, with linear elastic isotropic material, as shown in Fig

Post by answerhappygod »

For A Mechanical Structural System Such As Automotive Chassis With Linear Elastic Isotropic Material As Shown In Fig 1
For A Mechanical Structural System Such As Automotive Chassis With Linear Elastic Isotropic Material As Shown In Fig 1 (628.96 KiB) Viewed 24 times

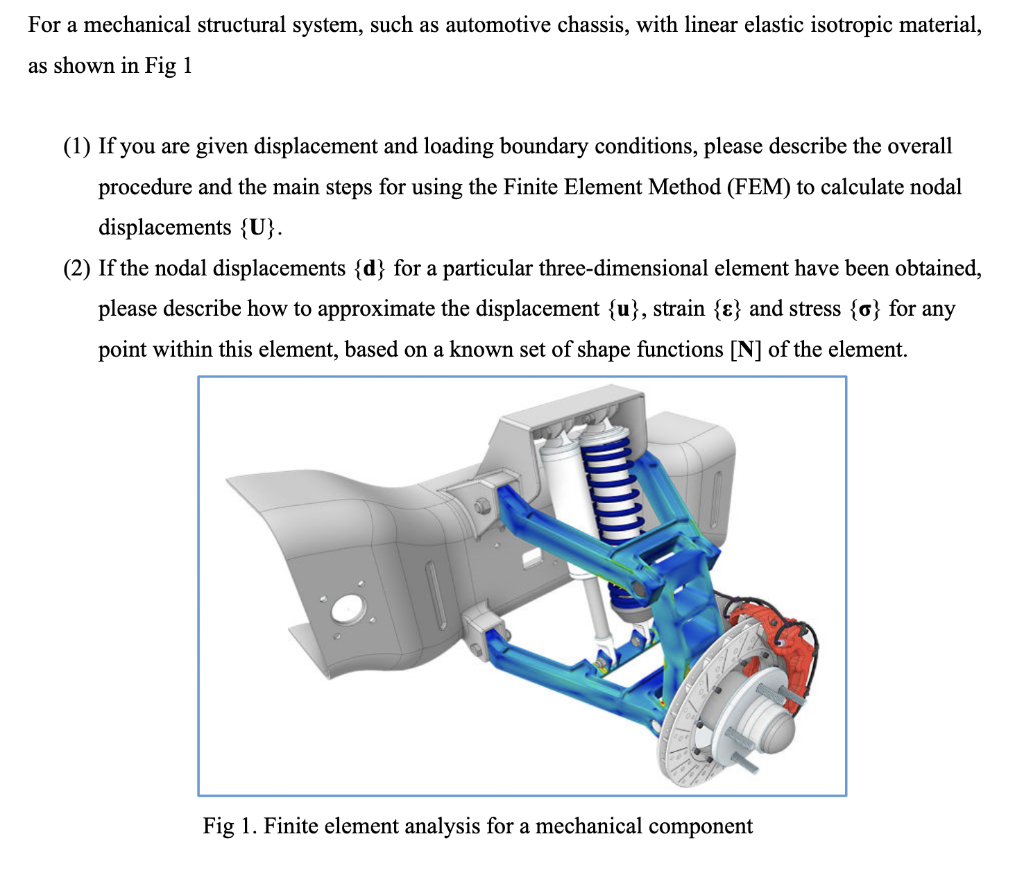

For a mechanical structural system, such as automotive chassis, with linear elastic isotropic material, as shown in Fig 1 (1) If you are given displacement and loading boundary conditions, please describe the overall procedure and the main steps for using the Finite Element Method (FEM) to calculate nodal displacements {U}. (2) If the nodal displacements {d} for a particular three-dimensional element have been obtained, please describe how to approximate the displacement {u}, strain {E} and stress {0} for any point within this element, based on a known set of shape functions [N] of the element. Fig 1. Finite element analysis for a mechanical component
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
