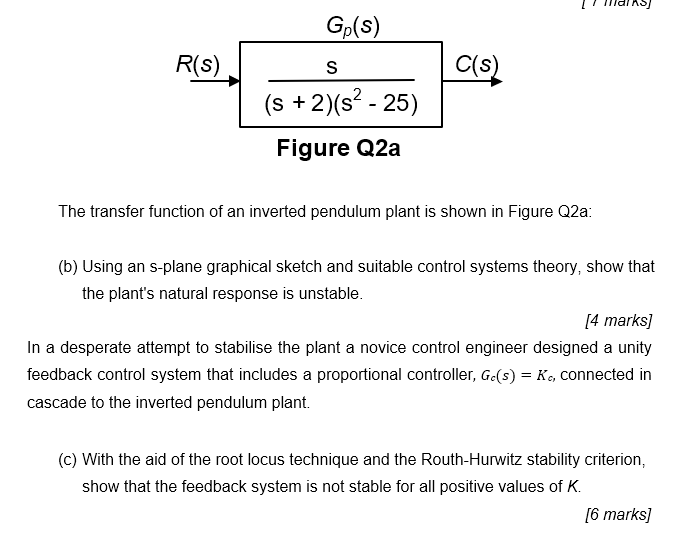

Gp(s) R(S) S C(S) (s + 2)(s? - 25) Figure Q2a The transfer function of an inverted pendulum plant is shown in Figure Q2a

[answerhappygod]

Gp S R S S C S S 2 S 25 Figure Q2a The Transfer Function Of An Inverted Pendulum Plant Is Shown In Figure Q2a 1 (29.58 KiB) Viewed 11 times

Gp(s) R(S) S C(S) (s + 2)(s? - 25) Figure Q2a The transfer function of an inverted pendulum plant is shown in Figure Q2a: (b) Using an s-plane graphical sketch and suitable control systems theory, show that the plant's natural response is unstable. [4 marks) In a desperate attempt to stabilise the plant a novice control engineer designed a unity feedback control system that includes a proportional controller, Ge(s) = K, connected in cascade to the inverted pendulum plant. (c) With the aid of the root locus technique and the Routh-Hurwitz stability criterion, show that the feedback system is not stable for all positive values of K. [6 marks]
