There is a simple supported beam and the dimension is shown in the following picture. Question 1: Solve the maximum stre

Post by answerhappygod »

There Is A Simple Supported Beam And The Dimension Is Shown In The Following Picture Question 1 Solve The Maximum Stre 1
There Is A Simple Supported Beam And The Dimension Is Shown In The Following Picture Question 1 Solve The Maximum Stre 1 (325.48 KiB) Viewed 8 times

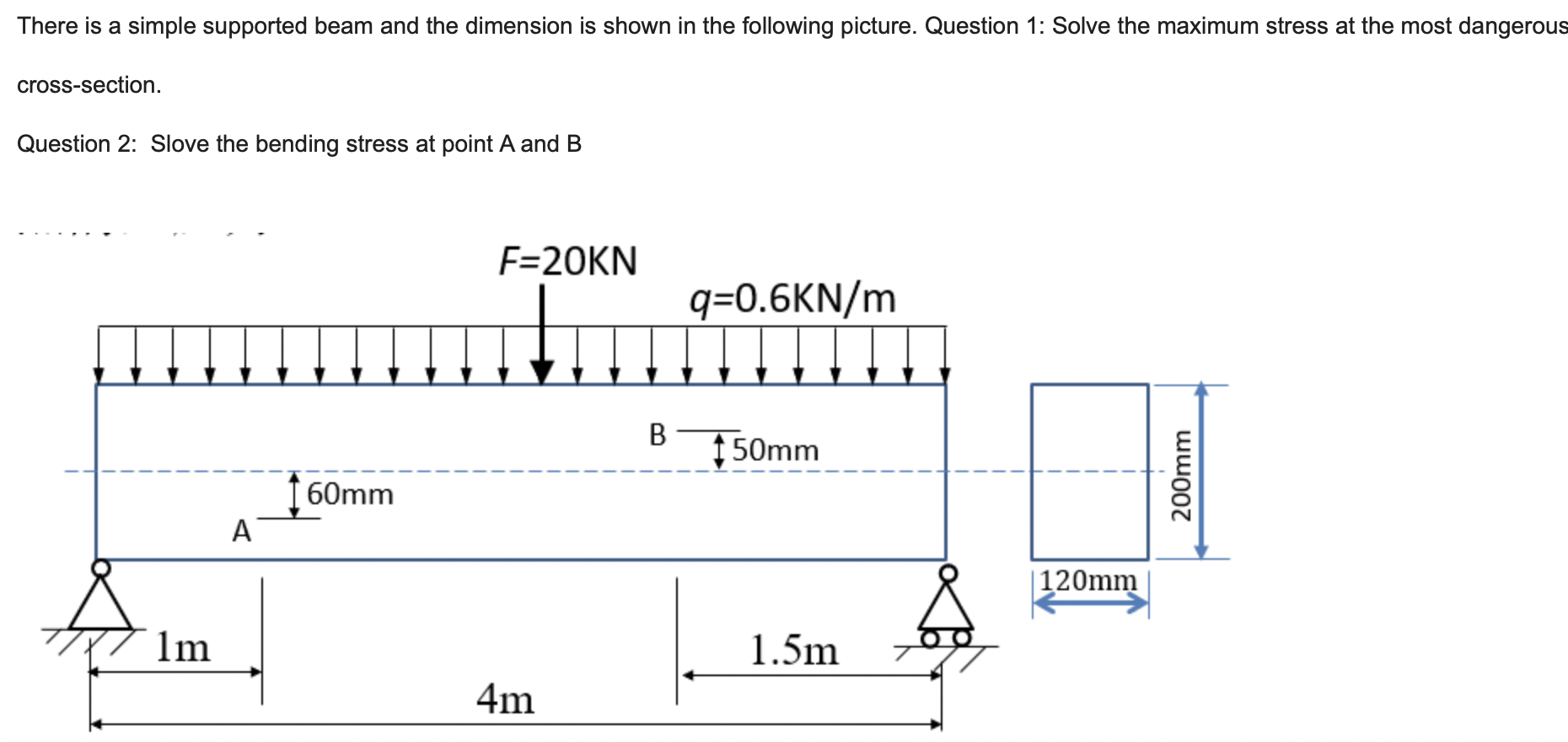

There is a simple supported beam and the dimension is shown in the following picture. Question 1: Solve the maximum stress at the most dangerous cross-section. Question 2: Slove the bending stress at point A and B F=20KN q=0.6KN/m B 150mm 200mm 1 60mm A | 120mm 1m 1.5m 4m
