Consider the pin-jointed structure shown in Figure Q1 below. The structure is subject to point loads at nodes I and J an

Post by answerhappygod »

Consider The Pin Jointed Structure Shown In Figure Q1 Below The Structure Is Subject To Point Loads At Nodes I And J An 1
Consider The Pin Jointed Structure Shown In Figure Q1 Below The Structure Is Subject To Point Loads At Nodes I And J An 1 (405.04 KiB) Viewed 18 times

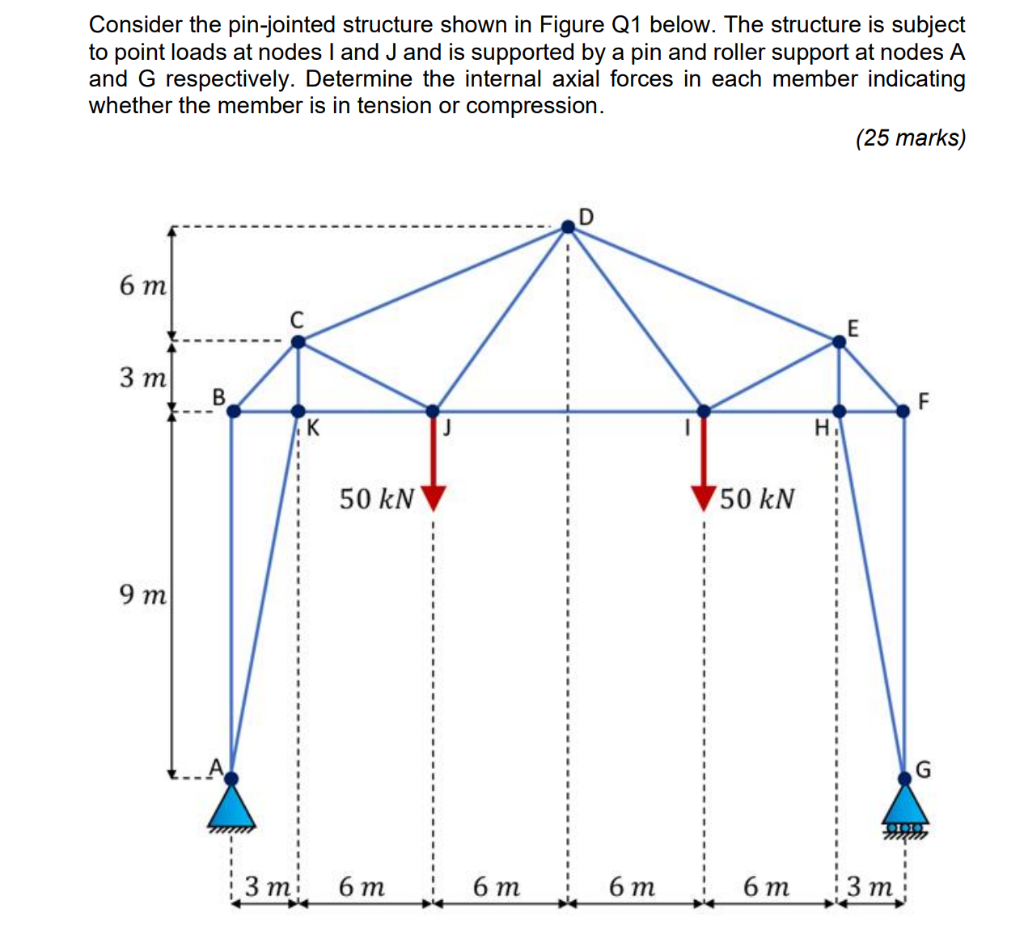

Consider the pin-jointed structure shown in Figure Q1 below. The structure is subject to point loads at nodes I and J and is supported by a pin and roller support at nodes A and G respectively. Determine the internal axial forces in each member indicating whether the member is in tension or compression. (25 marks) D 6 m 3 m B F K H 50 kN 50 kN 9 m G ----- 3 m 6 m 6 m 6 m 6 m 3 m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
