(f) For the block diagram of a control system shown in Figure Qlb, derive the closed-loop transfer function, C(s)/R(s).

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

(f) For the block diagram of a control system shown in Figure Qlb, derive the closed-loop transfer function, C(s)/R(s).

Post by answerhappygod »

F For The Block Diagram Of A Control System Shown In Figure Qlb Derive The Closed Loop Transfer Function C S R S 1
F For The Block Diagram Of A Control System Shown In Figure Qlb Derive The Closed Loop Transfer Function C S R S 1 (39.96 KiB) Viewed 19 times
solve this asap

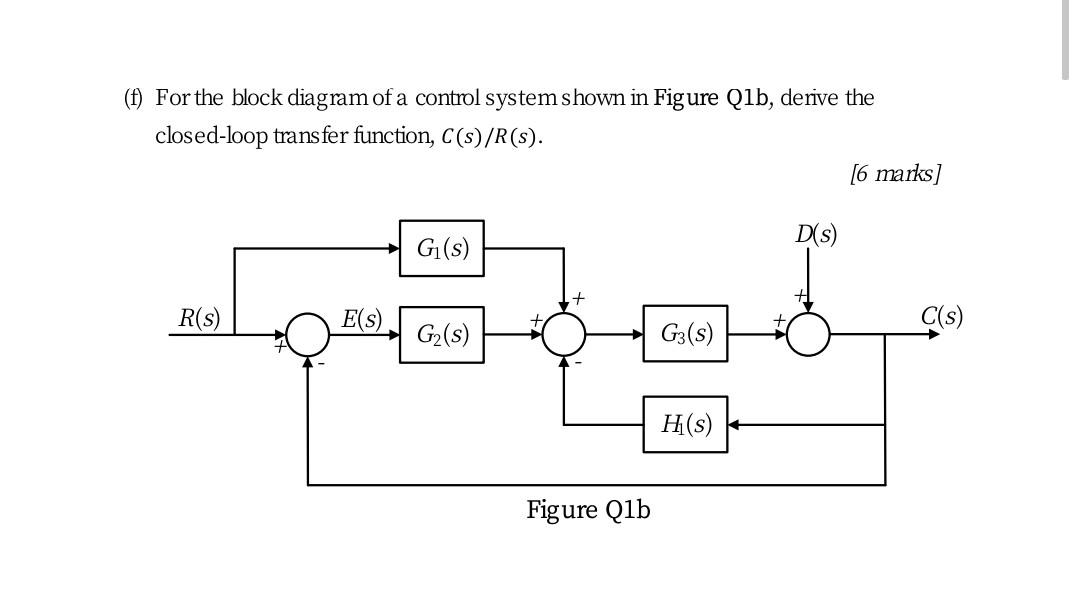

(f) For the block diagram of a control system shown in Figure Qlb, derive the closed-loop transfer function, C(s)/R(s). [6 marks] G](s) D(s) R(S) E(S) C(s) -၄---- G(s) G(s) H(s) Figure Qlb
