Q2. Consider the system shown in following figure. 1.06 $(s + 1) (3 + 2) The damping ratio of the dominant closed-loop p

Post by answerhappygod »

Q2 Consider The System Shown In Following Figure 1 06 S 1 3 2 The Damping Ratio Of The Dominant Closed Loop P 1
Q2 Consider The System Shown In Following Figure 1 06 S 1 3 2 The Damping Ratio Of The Dominant Closed Loop P 1 (43.34 KiB) Viewed 19 times

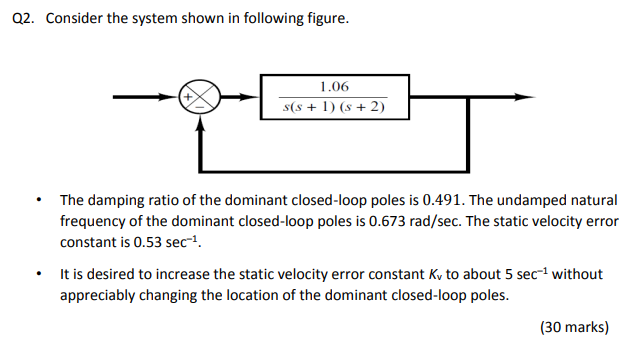

Q2. Consider the system shown in following figure. 1.06 $(s + 1) (3 + 2) The damping ratio of the dominant closed-loop poles is 0.491. The undamped natural frequency of the dominant closed-loop poles is 0.673 rad/sec. The static velocity error constant is 0.53 sec1 It is desired to increase the static velocity error constant Ky to about 5 sec-1 without appreciably changing the location of the dominant closed-loop poles. (30 marks)
