Aircraft Structures - ENG2011-N 4. The truss shown in figure Q4.1 is constructed out of square steel bars, all of which

Post by answerhappygod »

Aircraft Structures Eng2011 N 4 The Truss Shown In Figure Q4 1 Is Constructed Out Of Square Steel Bars All Of Which 1
Aircraft Structures Eng2011 N 4 The Truss Shown In Figure Q4 1 Is Constructed Out Of Square Steel Bars All Of Which 1 (31.29 KiB) Viewed 11 times

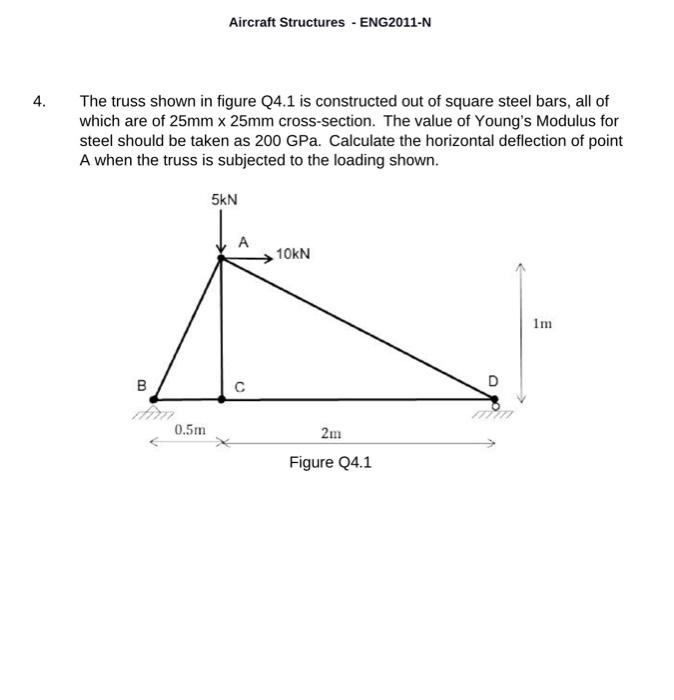

Aircraft Structures - ENG2011-N 4. The truss shown in figure Q4.1 is constructed out of square steel bars, all of which are of 25mm x 25mm cross-section. The value of Young's Modulus for steel should be taken as 200 GPa. Calculate the horizontal deflection of point A when the truss is subjected to the loading shown. 5kN 10KN Im B с 0.5m 2m Figure 24.1
