Aircraft Structures - ENG2011-N 1. Figure Q1 shows a three dimensional truss. Figure Q1 The truss has the following char

Post by answerhappygod »

Aircraft Structures Eng2011 N 1 Figure Q1 Shows A Three Dimensional Truss Figure Q1 The Truss Has The Following Char 1
Aircraft Structures Eng2011 N 1 Figure Q1 Shows A Three Dimensional Truss Figure Q1 The Truss Has The Following Char 1 (23.33 KiB) Viewed 17 times

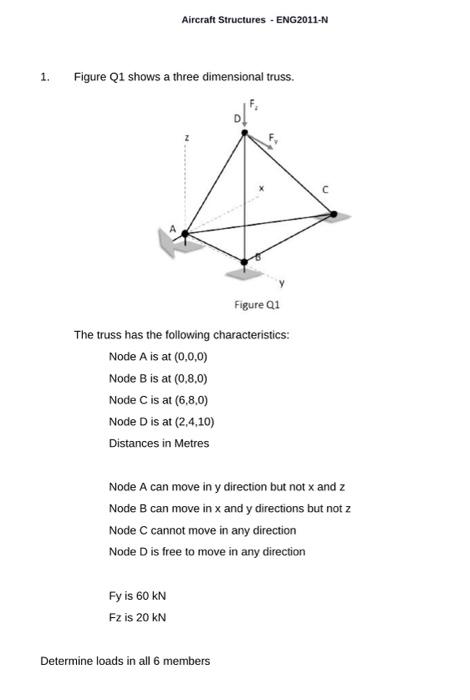

Aircraft Structures - ENG2011-N 1. Figure Q1 shows a three dimensional truss. Figure Q1 The truss has the following characteristics: Node A is at (0,0,0) Node B is at (0,8,0) Node C is at (6,8,0) Node D is at (2.4.10) Distances in Metres Node A can move in y direction but not x and z Node B can move in x and y directions but not z Node C cannot move in any direction Node D is free to move in any direction Fy is 60 KN Fz is 20 KN Determine loads in all 6 members
