*2.93. A foot pedal for a musical instrument is modeled by the sketch in Figure P2.93. With k = 2000 N/m,c = 25 kg/s, m

[answerhappygod]

2 93 A Foot Pedal For A Musical Instrument Is Modeled By The Sketch In Figure P2 93 With K 2000 N M C 25 Kg S M 1 (15.59 KiB) Viewed 20 times

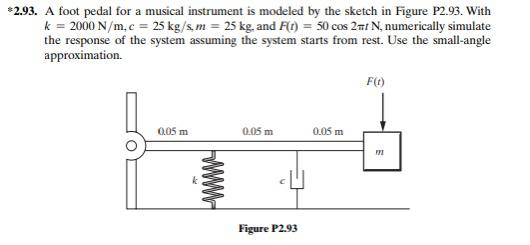

*2.93. A foot pedal for a musical instrument is modeled by the sketch in Figure P2.93. With k = 2000 N/m,c = 25 kg/s, m = 25 kg, and F(t) = 50 cos 2-1 N, numerically simulate the response of the system assuming the system starts from rest. Use the small-angle approximation F1) 0.05 m 005 m 0.05 m m www Figure P2.93
