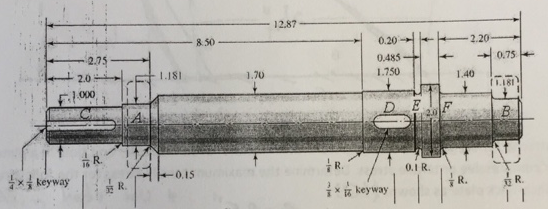

Shown in the figure is a shaft supported by two deep groove ball
bearings, which is driven by a gear in the right keyway, which
drives a fan in the left keyway. At steady state speed, the gear
transmits a radial load of 250 lbf and a
tangential load of 700 lbf at pitch
diameter of 8 inch.
Explain step by step how to obtain the torque and
bending moment diagrams.
All dimensions in the figure are in inches.
Shown In The Figure Is A Shaft Supported By Two Deep Groove Ball Bearings Which Is Driven By A Gear In The Right Keyway 1 (160.37 KiB) Viewed 15 times
12.87 8.50 2.20 0.20 0.485 1.750 0.75 1.181 1.70 2.75 2.0 F1.000 1.40 11.181 DE B -19 0.IR 0.15 keyway R. хи keyway FR R IR. | |
