A 60 mm diameter circle com rotates
clockwise with a flat face follower and
off set of 10mm from the center of
rotation.
Determine the displacement of the
follower using graphical method.
Use 45 degree for each position et
the circle cam.

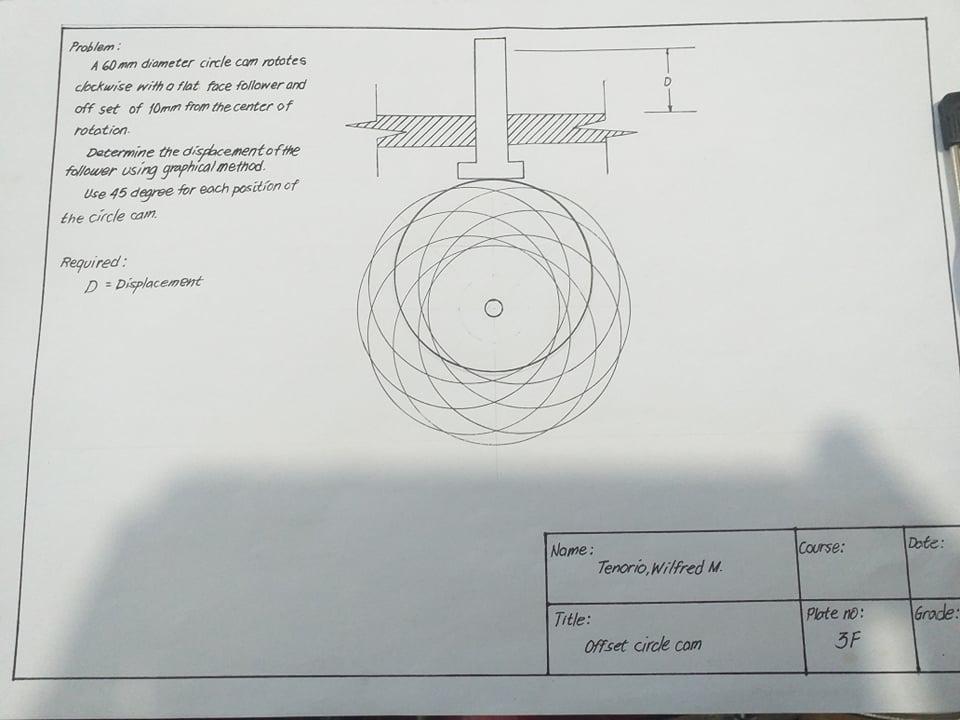

A 60 Mm Diameter Circle Com Rotates Clockwise With A Flat Face Follower And Off Set Of 10mm From The Center Of Rotation 1 (55.18 KiB) Viewed 8 times
Problem: A 60 mm diameter circle com rototes clockwise with a flat face follower and off set of 10mm from the center of rotation Determine the displacement of the follower using graphical method. Use 45 degree for each position of the circle can Required: D = Displacement Course: Dote: Name: Tenorio, Wilfred M. Grade: Title: Offset circle cam Plote no: 3F
