The circular disk (radius = 250mm) rolls to the right
without
slipping. At the instant shown, the magnitude of the velocity
of
point B relative to point A is 2.0m/s.
(a) Show that the angular speed of the disk, ω, is 10.0
rad/s.
(b) By drawing an appropriate velocity diagram, determine the
velocity of point C, v
C
.
(c) Draw a clear velocity diagram relating the velocities of
points
B and C and then calculate the velocity of point B, v
B
(magnitude and direction).

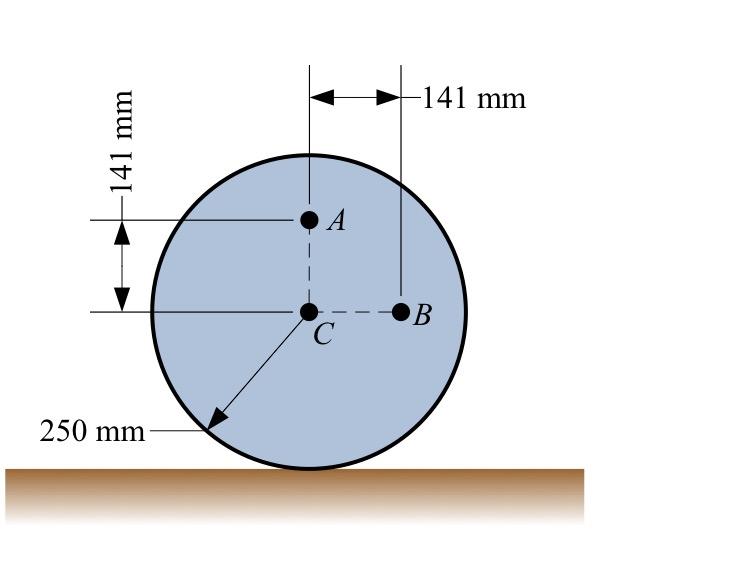

The Circular Disk Radius 250mm Rolls To The Right Without Slipping At The Instant Shown The Magnitude Of The Veloc 1 (23.61 KiB) Viewed 15 times
-141 mm 141 mm A B C 250 mm
