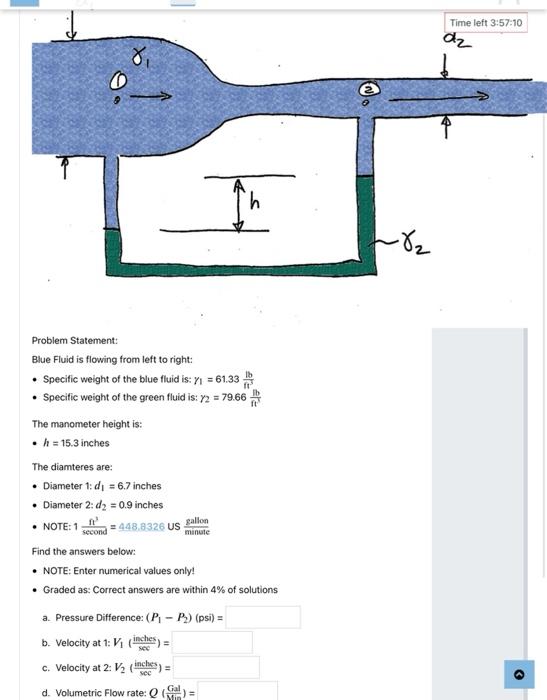

- Time Left 3 57 10 Dz W In 82 Problem Statement Blue Fluid Is Flowing From Left To Right Specific Weight Of The Blu 1 (39.33 KiB) Viewed 11 times
- Time Left 3 57 10 Dz W In 82 Problem Statement Blue Fluid Is Flowing From Left To Right Specific Weight Of The Blu 2 (34.55 KiB) Viewed 11 times
- Time Left 3 57 10 Dz W In 82 Problem Statement Blue Fluid Is Flowing From Left To Right Specific Weight Of The Blu 3 (44.69 KiB) Viewed 11 times

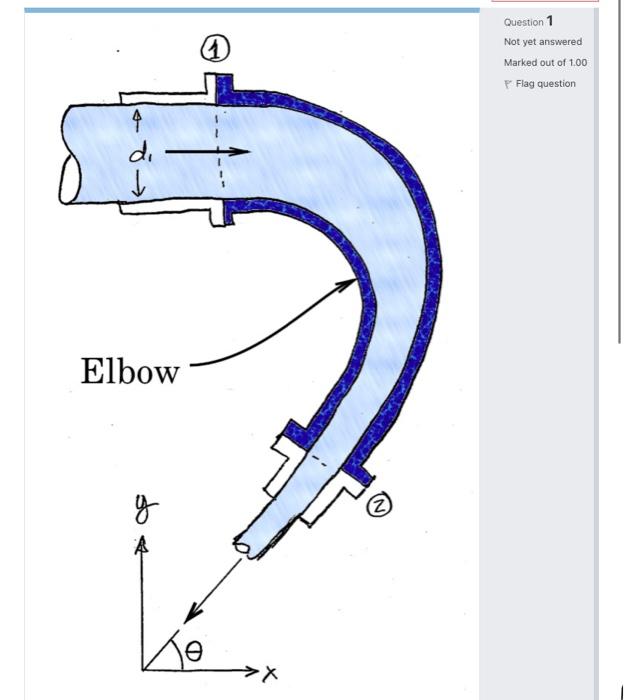

Question 1 Not yet answered Marked out of 1.00 Flag question di Elbow z g A Ko →X

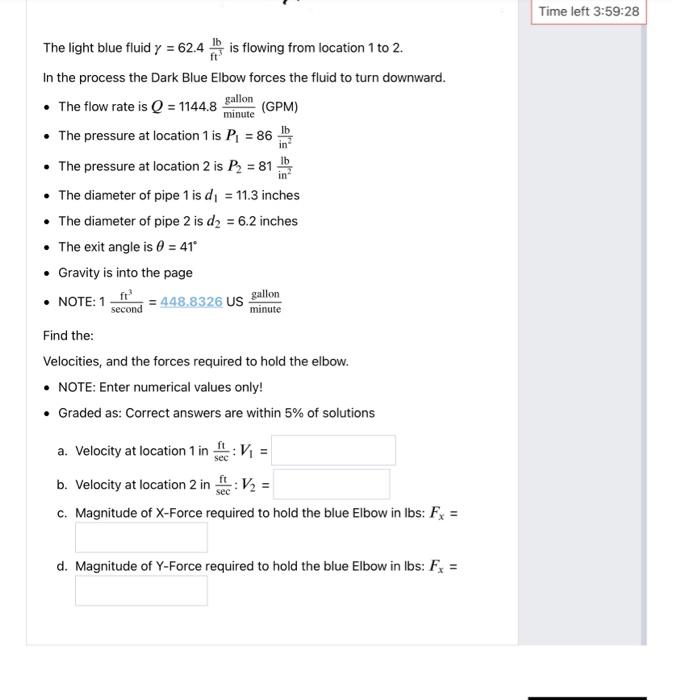

Time left 3:59:28 gallon minute Ib in The light blue fluid y = 62.4 is flowing from location 1 to 2. In the process the Dark Blue Elbow forces the fluid to turn downward. • The flow rate is Q = 1144.8 (GPM) • The pressure at location 1 is P = 86 • The pressure at location 2 is P2 = 81 Ib • The diameter of pipe 1 is di = 11.3 inches • The diameter of pipe 2 is d2 = 6.2 inches • The exit angle is 0 = 41 • Gravity is into the page 448,8326 US gallon minute Find the: Velocities, and the forces required to hold the elbow. • NOTE: Enter numerical values only! • Graded as: Correct answers are within 5% of solutions . NOTE: 1 ft second ft sec a. Velocity at location 1 in V = b. Velocity at location 2 in :V2 = C. Magnitude of X-Force required to hold the blue Elbow in lbs: Fx = sec d. Magnitude of Y-Force required to hold the blue Elbow in lbs: Fx =
