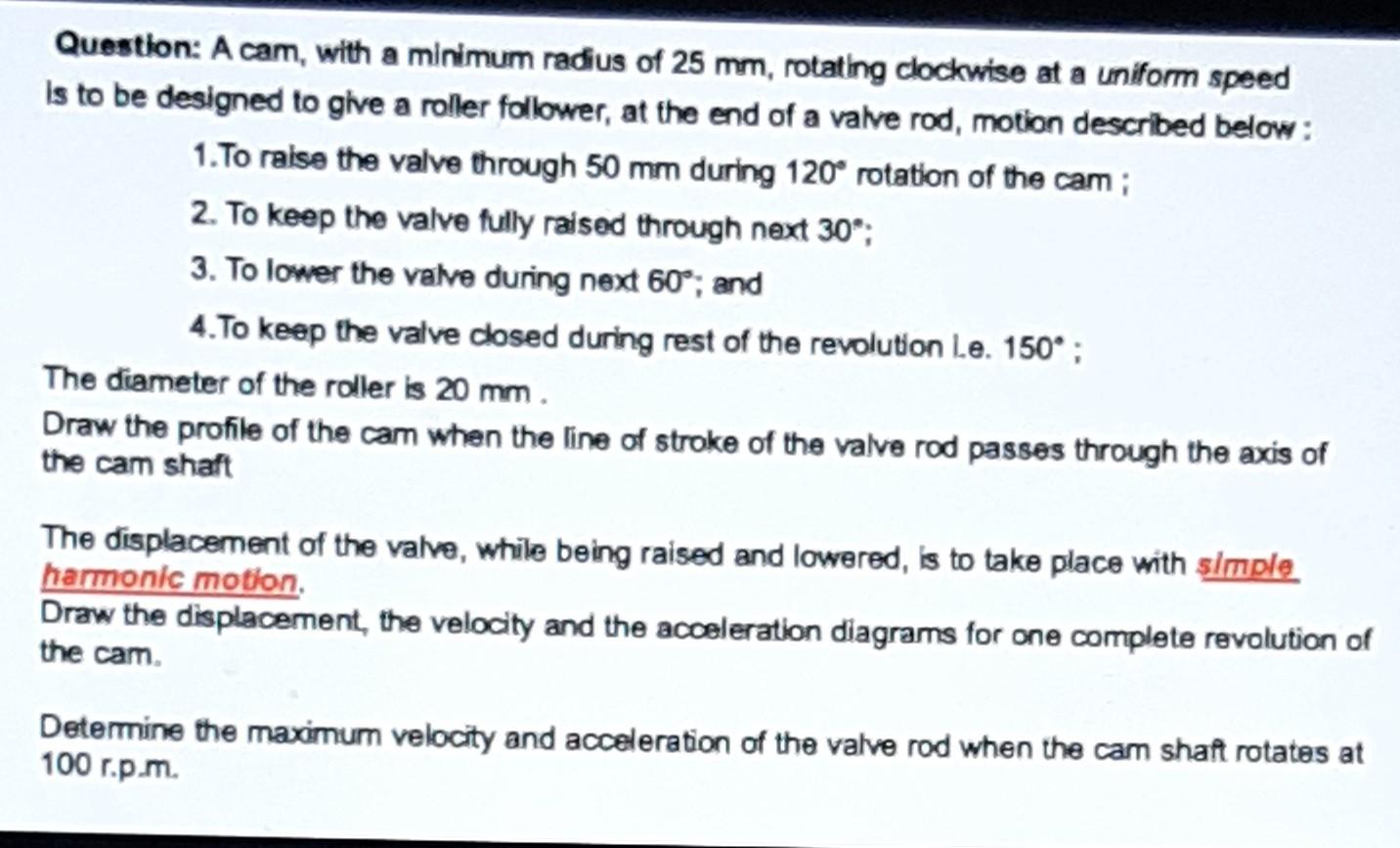

Question: A cam, with a minimum radius of 25 mm, rotating clockwise at a uniform speed is to be designed to give a roller follower, at the end of a valve rod, motion described below: 1. To raise the valve through 50 mm during 120° rotation of the cam ; 2. To keep the valve fully raised through next 30°; 3. To lower the valve during next 60°; and 4. To keep the valve closed during rest of the revolution Le. 150°; The diameter of the roller is 20 mm. Draw the profile of the cam when the line of stroke of the valve rod passes through the axis of the cam shaft The displacement of the valve, while being raised and lowered, is to take place with simple harmonic motion Draw the displacement, the velocity and the acceleration diagrams for one complete revolution of the cam. Determine the maximum velocity and acceleration of the valve rod when the cam shaft rotates at 100 r.p.m.
