QUESTION 2 (a) A control system is important to be implemented for a number of reasons. State FOUR (4) reasons why contr

[answerhappygod]

Question 2 A A Control System Is Important To Be Implemented For A Number Of Reasons State Four 4 Reasons Why Contr 1 (59.35 KiB) Viewed 11 times

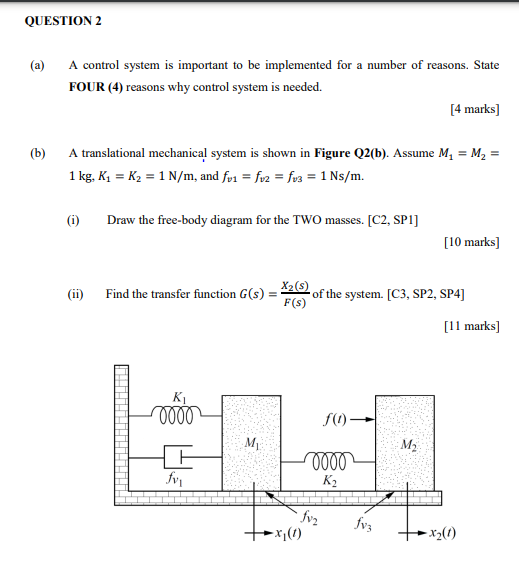

QUESTION 2 (a) A control system is important to be implemented for a number of reasons. State FOUR (4) reasons why control system is needed. [4 marks) (b) A translational mechanical system is shown in Figure Q2(b). Assume Mn = M2 = 1 kg, K1 = K2 = 1 N/m, and fun = fu2 = fv3 = 1 Ns/m. (i) Draw the free-body diagram for the TWO masses. [C2, SP1] [10 marks] (ii) Find the transfer function (s) X2 (3) F(s) of the system. [C3, SP2, SP4] [11 marks] K 0000 10 M M2 fv 0000 KO fv2 fv3 -x70 x200
