The no-load voltage of a three phase, 60 Hz, Y- connected synchronous generator is 3464 V. When the generator delivers t

Post by answerhappygod »

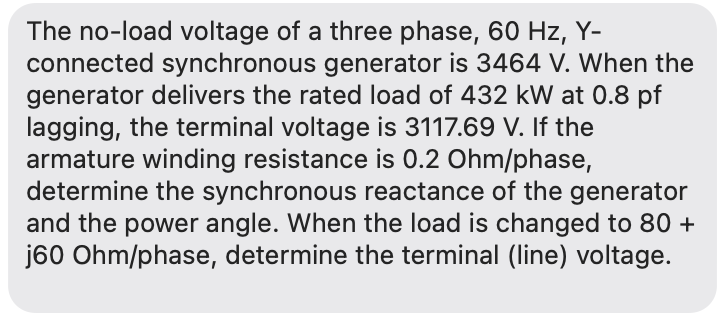

The No Load Voltage Of A Three Phase 60 Hz Y Connected Synchronous Generator Is 3464 V When The Generator Delivers T 1
The No Load Voltage Of A Three Phase 60 Hz Y Connected Synchronous Generator Is 3464 V When The Generator Delivers T 1 (52.14 KiB) Viewed 10 times
The no-load voltage of a three phase, 60 Hz, Y- connected synchronous generator is 3464 V. When the generator delivers the rated load of 432 kW at 0.8 pf lagging, the terminal voltage is 3117.69 V. If the armature winding resistance is 0.2 Ohm/phase, determine the synchronous reactance of the generator and the power angle. When the load is changed to 80 + j60 Ohm/phase, determine the terminal (line) voltage.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
