Based on the control system shown: R(S) + 1 1 C(s) s? (s+1) s? (s+3) S a. Find the closed-loop transfer function. b. Wha

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Based on the control system shown: R(S) + 1 1 C(s) s? (s+1) s? (s+3) S a. Find the closed-loop transfer function. b. Wha

Post by answerhappygod »

Based On The Control System Shown R S 1 1 C S S S 1 S S 3 S A Find The Closed Loop Transfer Function B Wha 1
Based On The Control System Shown R S 1 1 C S S S 1 S S 3 S A Find The Closed Loop Transfer Function B Wha 1 (37.81 KiB) Viewed 27 times

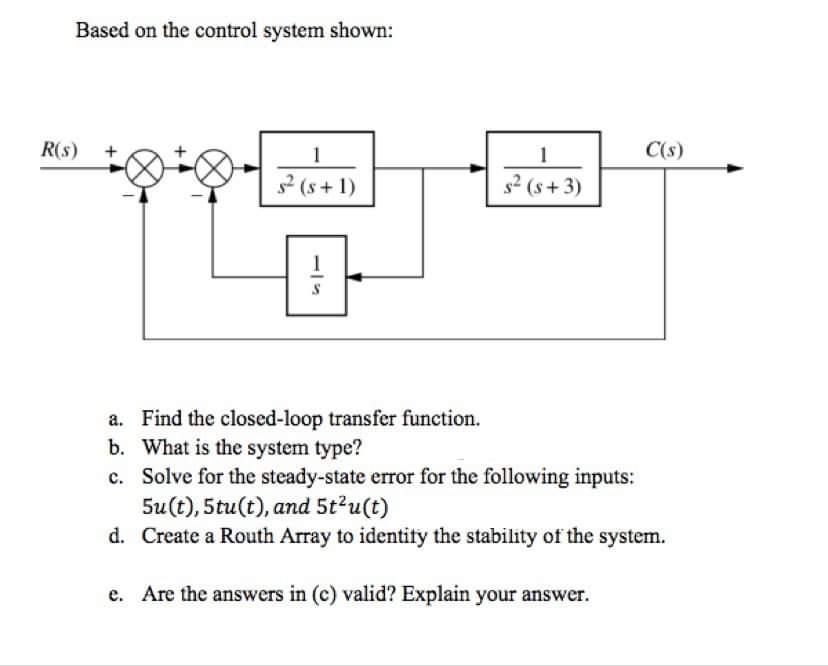

Based on the control system shown: R(S) + 1 1 C(s) s? (s+1) s? (s+3) S a. Find the closed-loop transfer function. b. What is the system type? c. Solve for the steady-state error for the following inputs: 5u(t), 5tu(t), and 5t-u(t) d. Create a Routh Array to identity the stability of the system. e. Are the answers in (c) valid? Explain your answer.
