Handwritten solutions should be presented below the data
experiment table. Thank you!

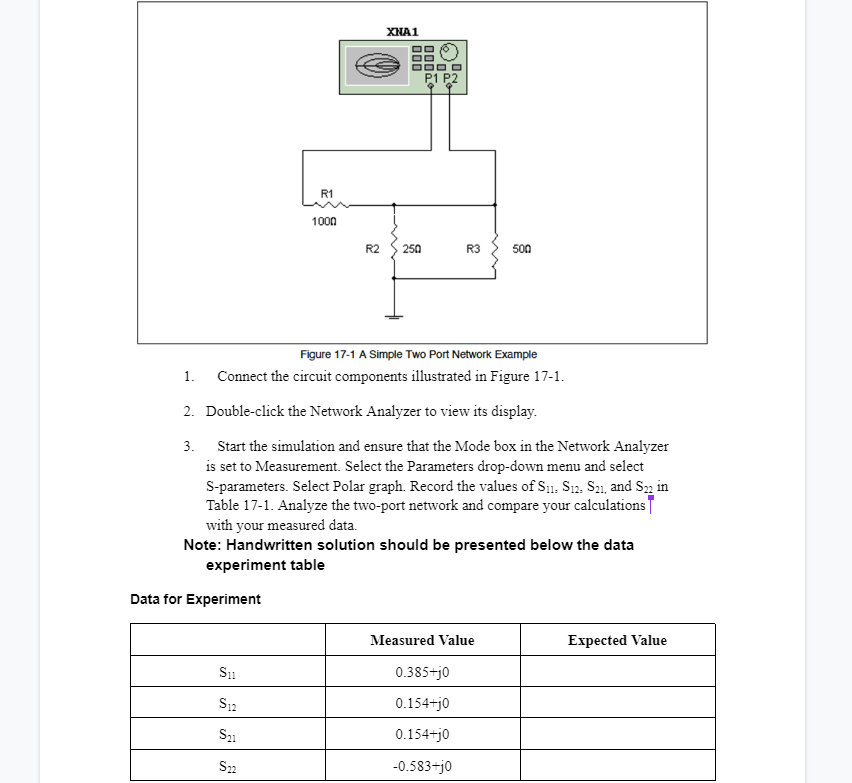

XA1 ☺ 000 ●1000 P1 P2 R1 1000 R2 250 R3 500 1. Figure 17-1 A Simple Two Port Network Example Connect the circuit components illustrated in Figure 17-1. 2. Double-click the Network Analyzer to view its display. 3. Start the simulation and ensure that the Mode box in the Network Analyzer is set to Measurement. Select the Parameters drop-down menu and select S-parameters. Select Polar graph. Record the values of S11. S12. S21, and S22 in Table 17-1. Analyze the two-port network and compare your calculations with your measured data. Note: Handwritten solution should be presented below the data experiment table Data for Experiment Measured Value Expected Value S11 0.385-30 S12 0.154+0 S21 0.154+0 S22 -0.583+j0
Handwritten solutions should be presented below the data experiment table. Thank you!
-
