Question 1 1 pts A voltage generator with vy(t) = 5cos(2 x 9x10t) V and internal impedance Zg = 36 12 is connected to a

[answerhappygod]

Question 1 1 Pts A Voltage Generator With Vy T 5cos 2 X 9x10t V And Internal Impedance Zg 36 12 Is Connected To A 1 (66.46 KiB) Viewed 14 times

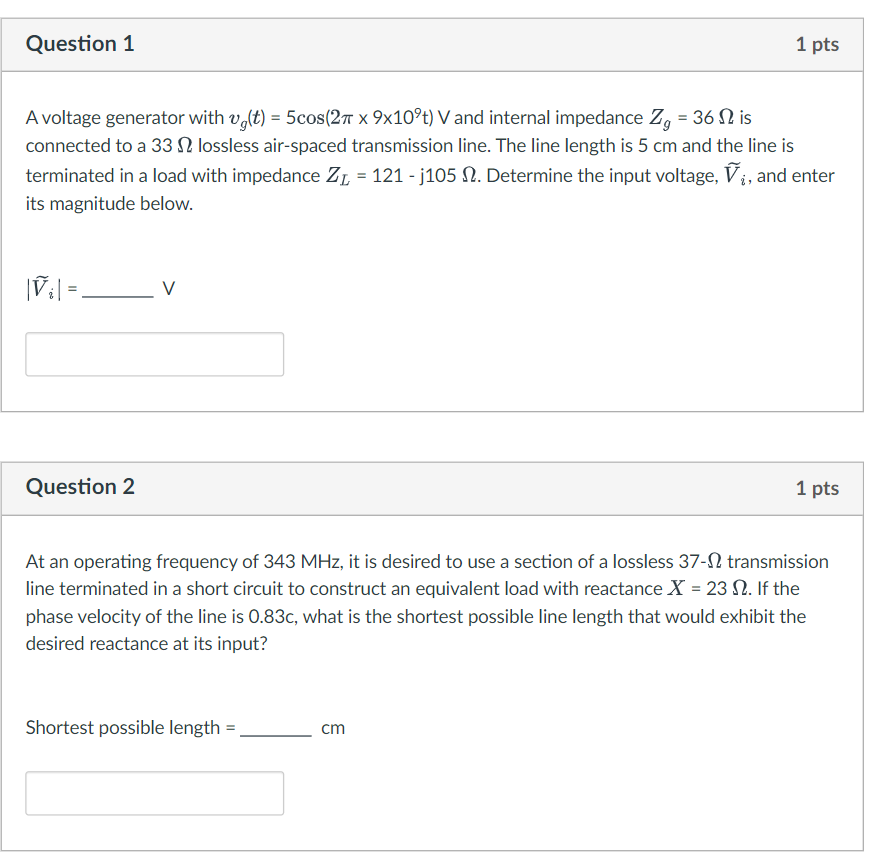

Question 1 1 pts A voltage generator with vy(t) = 5cos(2 x 9x10t) V and internal impedance Zg = 36 12 is connected to a 33 12 lossless air-spaced transmission line. The line length is 5 cm and the line is terminated in a load with impedance ZL = 121 - j105 12. Determine the input voltage, Vi, and enter its magnitude below. Vil = _V Question 2 1 pts At an operating frequency of 343 MHz, it is desired to use a section of a lossless 37-22 transmission line terminated in a short circuit to construct an equivalent load with reactance X = 23 12. If the phase velocity of the line is 0.83c, what is the shortest possible line length that would exhibit the desired reactance at its input? Shortest possible length = cm
