Question 5 1 pts A 231-2 lossless air transmission line is connected to a complex load composed of a 409-S2 resistor in

Post by answerhappygod »

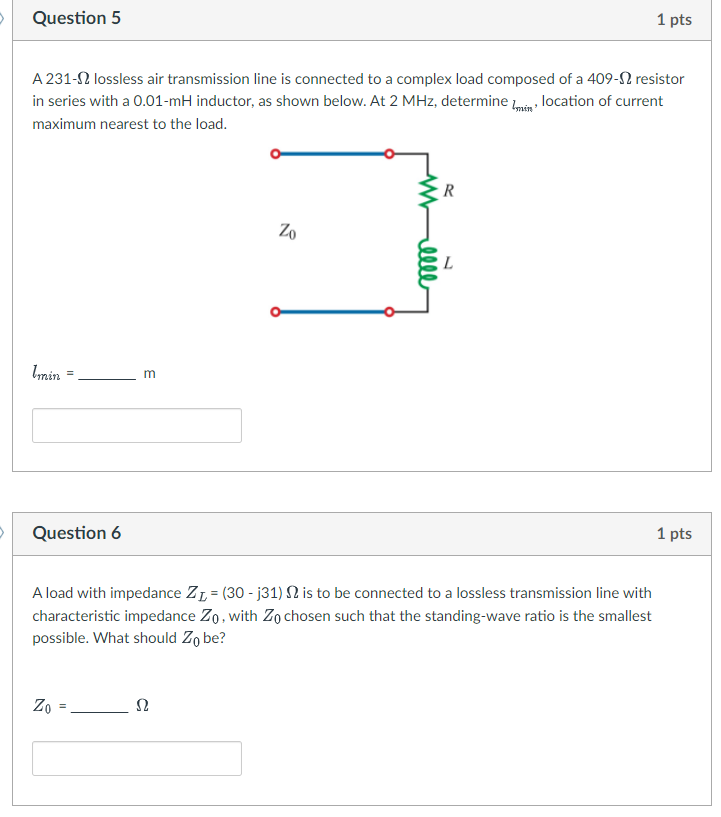

Question 5 1 Pts A 231 2 Lossless Air Transmission Line Is Connected To A Complex Load Composed Of A 409 S2 Resistor In 1
Question 5 1 Pts A 231 2 Lossless Air Transmission Line Is Connected To A Complex Load Composed Of A 409 S2 Resistor In 1 (51.6 KiB) Viewed 17 times
Question 5 1 pts A 231-2 lossless air transmission line is connected to a complex load composed of a 409-S2 resistor in series with a 0.01-mH inductor, as shown below. At 2 MHz, determine Imin, location of current maximum nearest to the load. R Zo L Imin 11 m Question 6 1 pts A load with impedance 2 L = (30 - j31) N2 is to be connected to a lossless transmission line with characteristic impedance Zo, with Zo chosen such that the standing-wave ratio is the smallest possible. What should Zo be? ZO II 12
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
